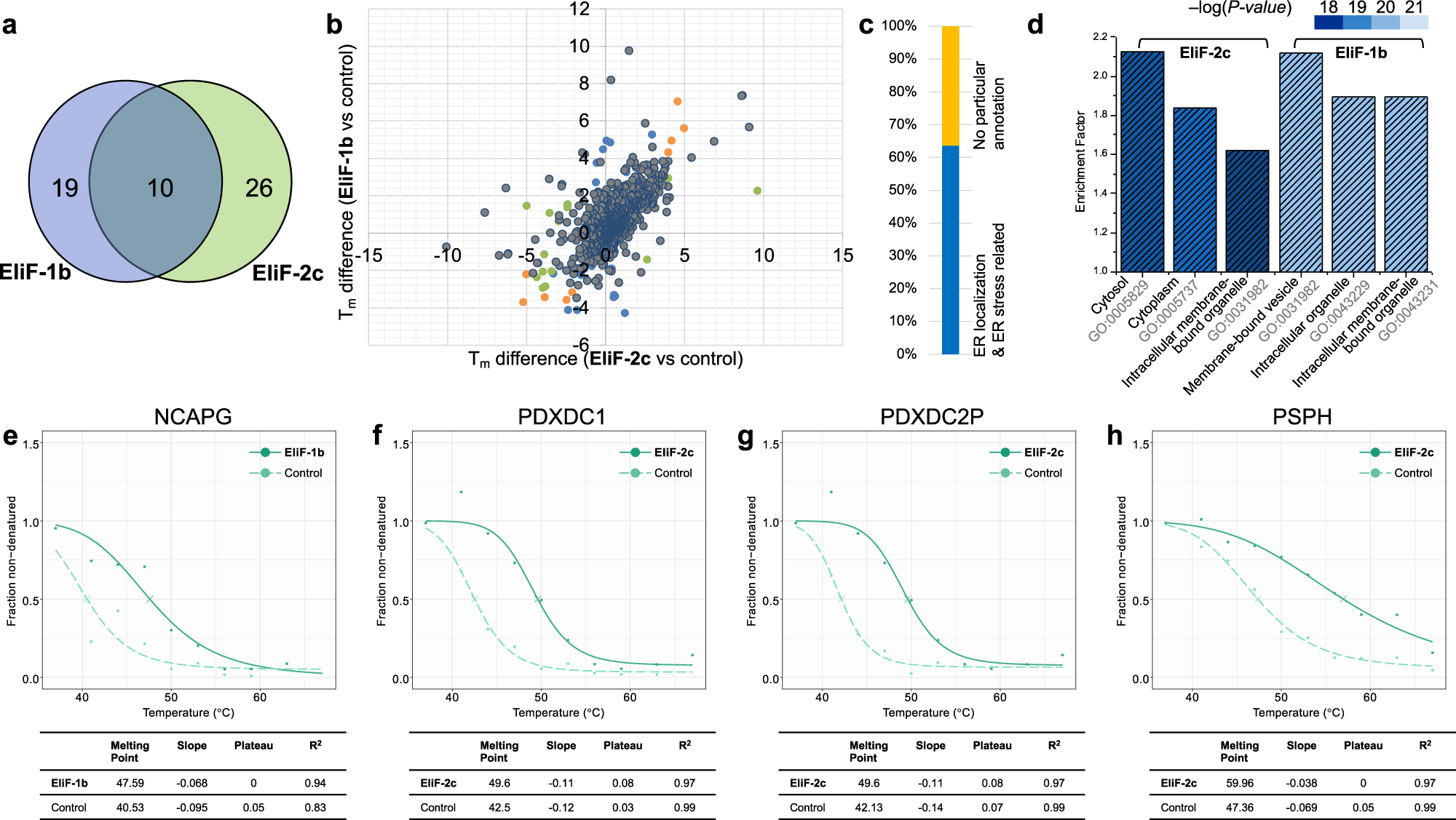

Fig. 6: Label-free target identification for EliF-1b and EliF-2c.
From: Orthogonally-tunable and ER-targeting fluorophores detect avian influenza virus early infection
a A Venn diagram of target proteins identified by TPP. b Tm shift plot of TPP with target proteins of EliF-1b in blue, EliF-2c in green, and the common hits in orange color, respectively. c ER-related functional annotation of target proteins. d Gene ontology enrichment analysis of 55 target proteins using the cellular component term. Thermal protein melting curves of four major target proteins, NCAPG (e); PDXDC1 (f); PDXDC2P (g); PSPH (h) treated with EliF probes (green solid line) and control groups (green dashed line).
