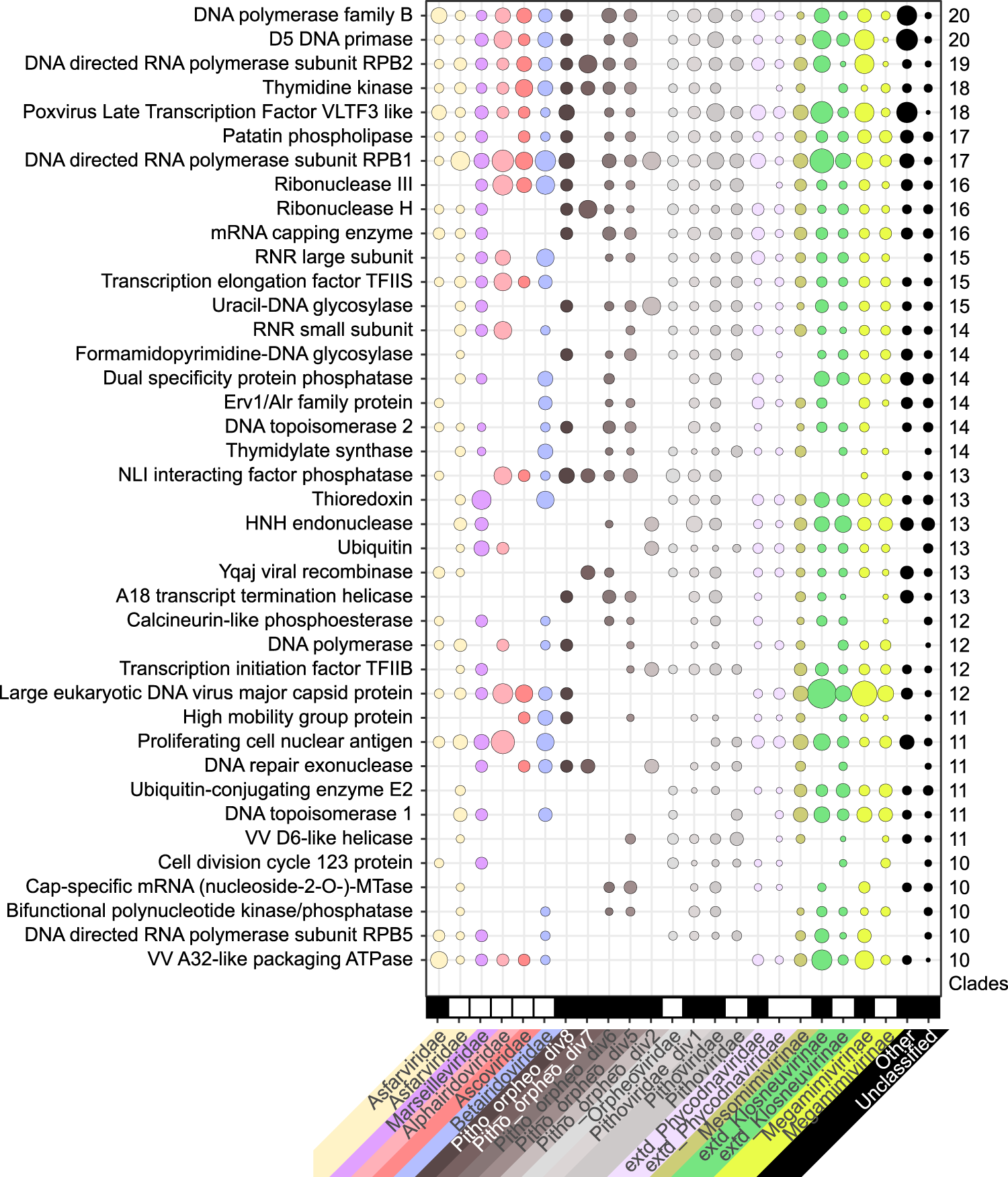

Fig. 5: Comparison of most shared functions among metagenomic and reference Nucleocytoviricota families.
From: Past and present giant viruses diversity explored through permafrost metagenomics
Functions were selected among the annotations found in at least 10 clades. Metagenomic sequences are marked as black rectangles at the bottom of the plot while blank spaces correspond to reference genomes. Groups with less than 250 ORFs were marked as “Other”. The size of the bubbles represents the normalized ORFs counts (i.e., ORF counts/total number of ORFs in the group). The right-most column indicates the number of distinct clades having the function. The lines are sorted according to this value. Source data are provided as a Source Data file.
