Fig. 3: Selective gating.
From: Selective control of conductance modes in multi-terminal Josephson junctions

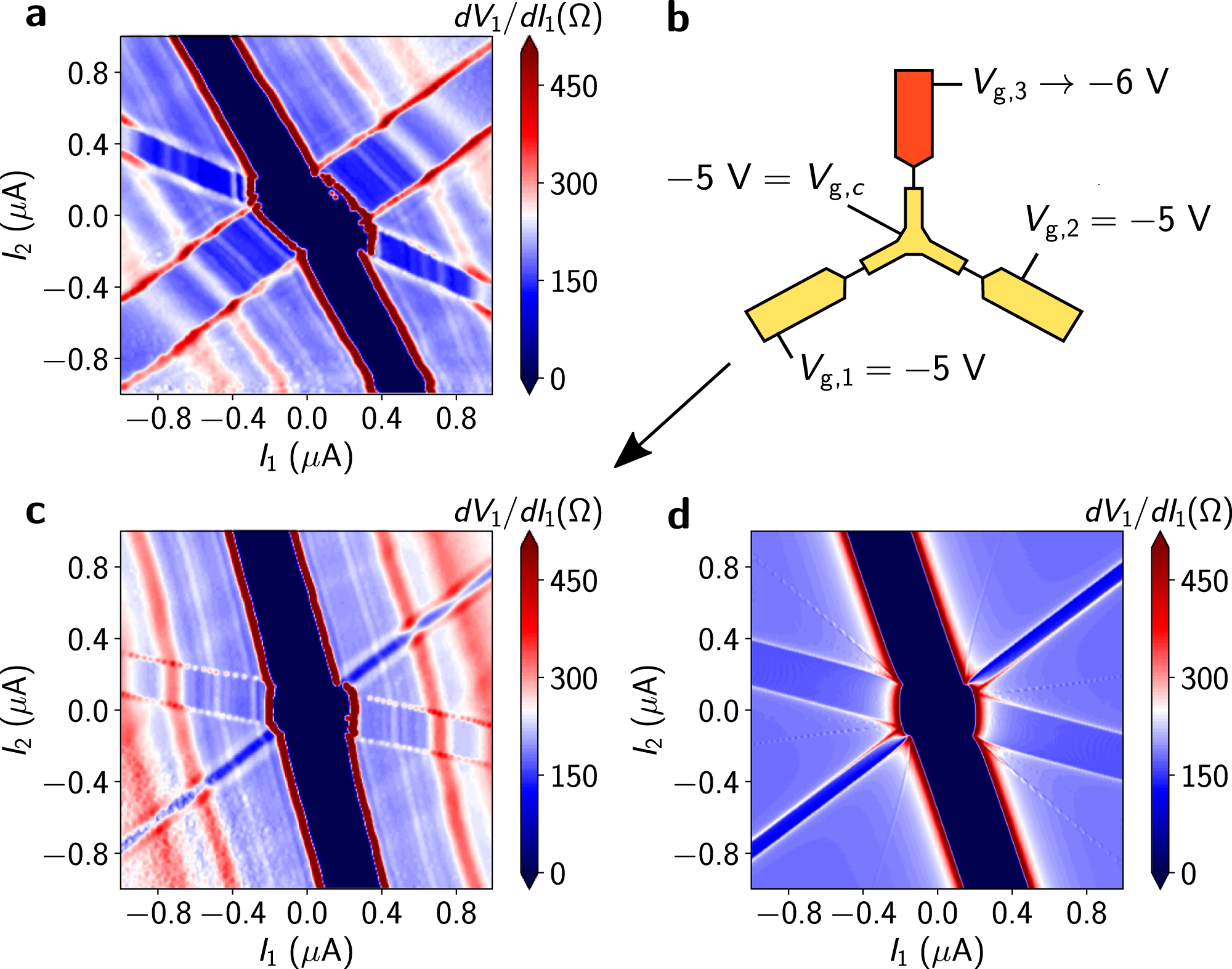

a Measurement of dV1/dI1 on Device 2, B = 0, T ~ 90 mK with Vg,c, Vg,1, Vg,2, Vg,3 = − 5 V. b Schematic of gate configuration for the selective gating of the junction leg between terminals 1 and 2. c Measurement of dV1/dI1 at Vg,c, Vg,1, Vg,2 = − 5 V and Vg,2 = − 6 V. d RCSJ simulation of dV1/dI1 with parameters tuned to reproduce the features of experimental data.
