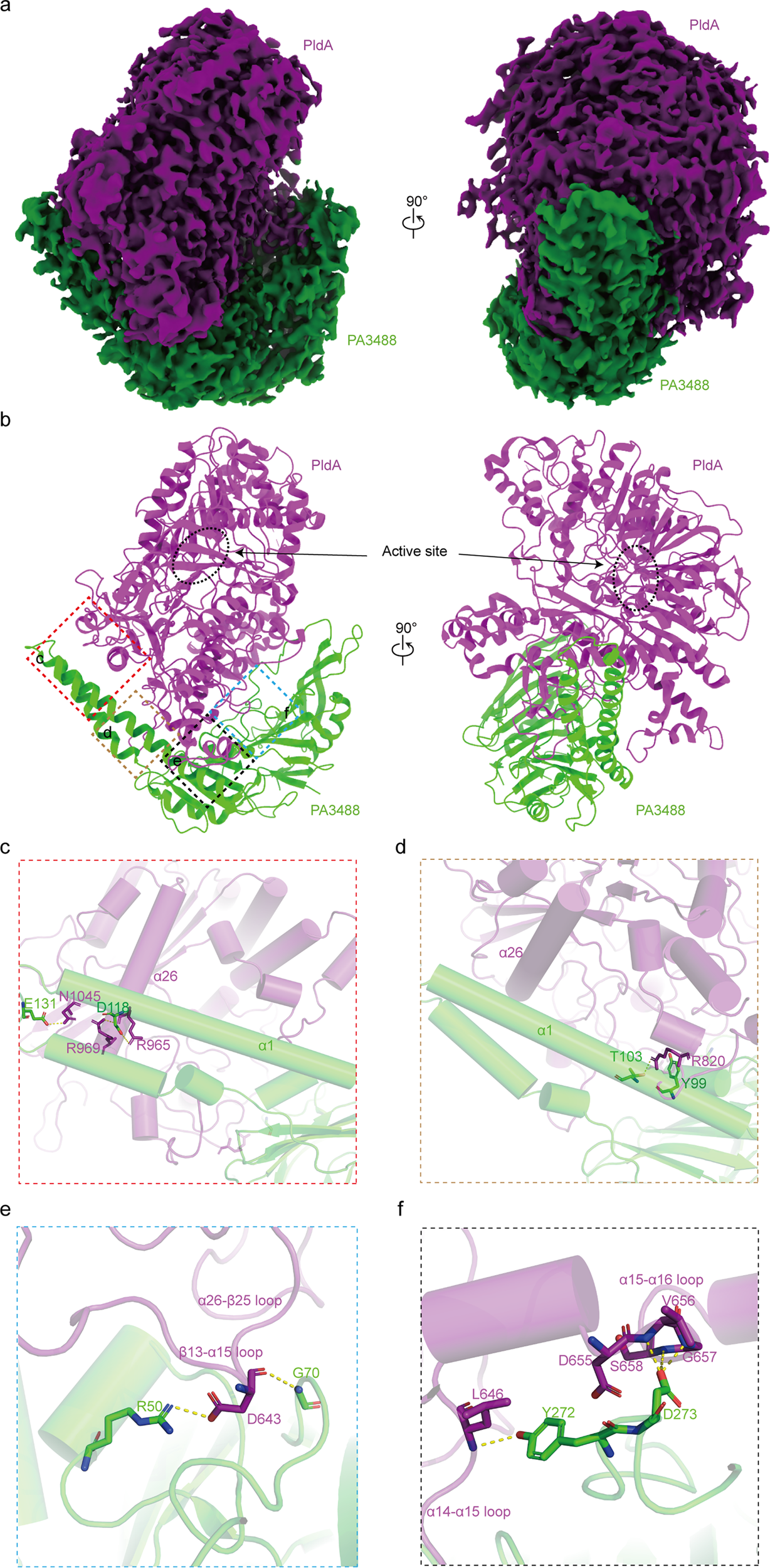

Fig. 4: Cryo-EM structure of PldA–PA3488 complex.
From: Structural insights into PA3488-mediated inactivation of Pseudomonas aeruginosa PldA
a, b Two orthogonal views of the cryo-EM density map (a) and model (b) of the PldA–PA3488 complex are shown: PldA and PA3488 are colored in purple and green, respectively. The dotted circle regions indicate the active site. c–f Details of the interaction between PldA and PA3488. The interaction residues are presented as sticks. Close-up view of interaction around PldA and C-terminal of α1 from PA3488 (c). Details of the interaction around PldA and N-terminal of α1 from PA3488 (d). Detailed interaction between PldA and central loops of PA3488 (e). Details of contacts around PldA and β13-β14 and β17-α4 loops of PA3488 (f).
