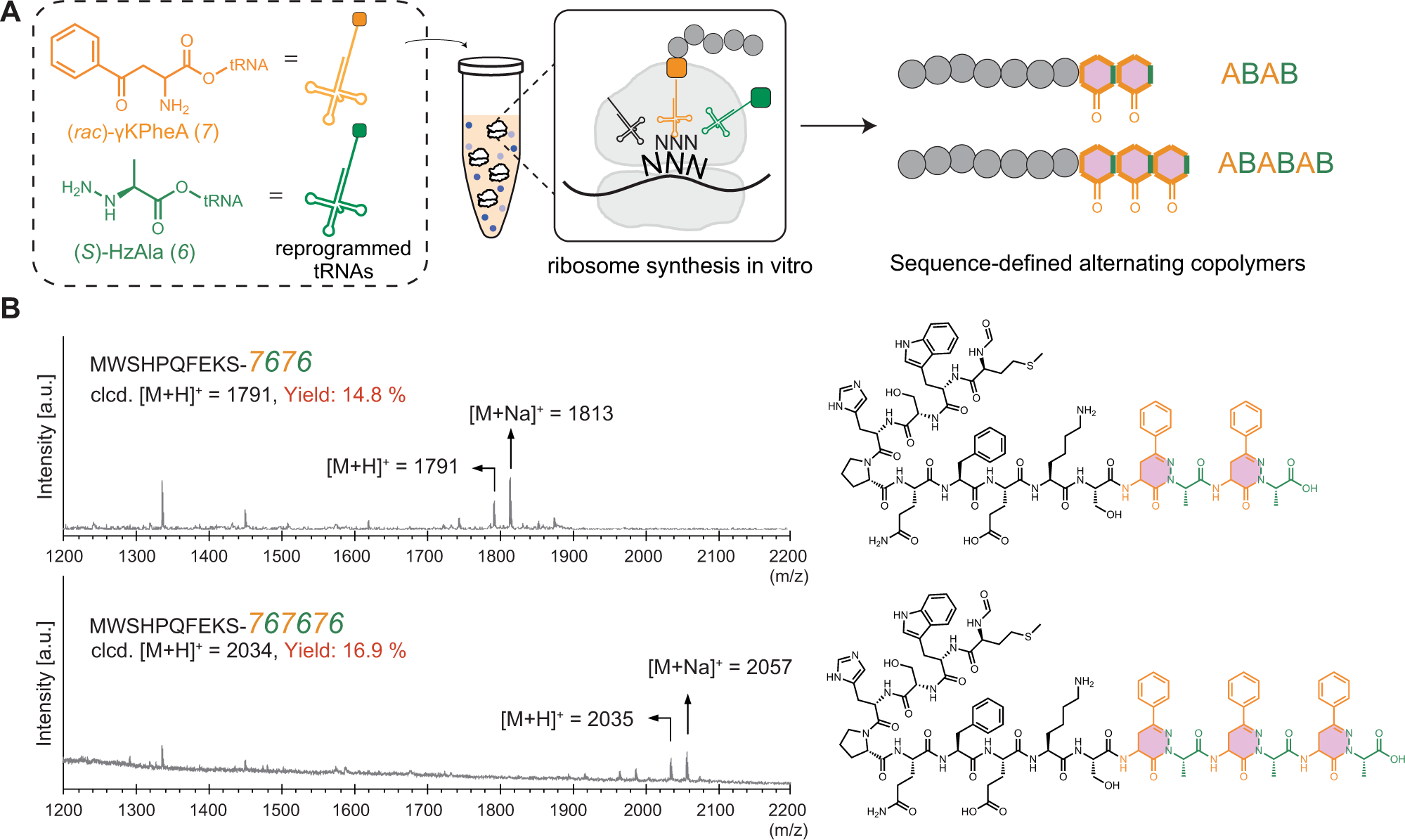

Fig. 4: Ribosomal synthesis of alternating copolymers with a pyridazinone backbone.
From: Ribosome-mediated biosynthesis of pyridazinone oligomers in vitro
A We designed an additional amino acid, γKPheA (7), bearing a ketone on its γ-carbon of the sidechain, for sequential polymerization of pyridazinones bonds on a biopolymer chain. Compounds 7 and 6 were charged to tRNAPro1E2(GGU) and tRNAGluE2(GAU) by flexizyme, respectively, and added to an in vitro transcription and translation reaction. The genetic template was designed to consecutively incorporate the monomers in an alternating fashion (ABAB- or ABABAB-type). The resulting peptides-pyridazinone hybrids were purified via the streptavidin tag (WSHPQFEK) and characterized by MALDI-TOF mass spectrometry. B MALDI mass spectrum of the StrepII-7676 peptide (relative peak area: 14.8%) and its molecular structure, calculated mass: [M + H]+ = 1791; [M + Na]+ = 1813 (C) MALDI mass spectrum of the StrepII-767676 (relative peak area: 16.9%) peptide and its molecular structure, calculated mass: [M + H]+ = 2034; [M + Na]+ = 2056. Spectra are representative of n = 3 independent experiments.
