Fig. 3: Signal preprocessing of BTS.

From: Dual sensing signal decoupling based on tellurium anisotropy for VR interaction and neuro-reflex system application

Fig. 3

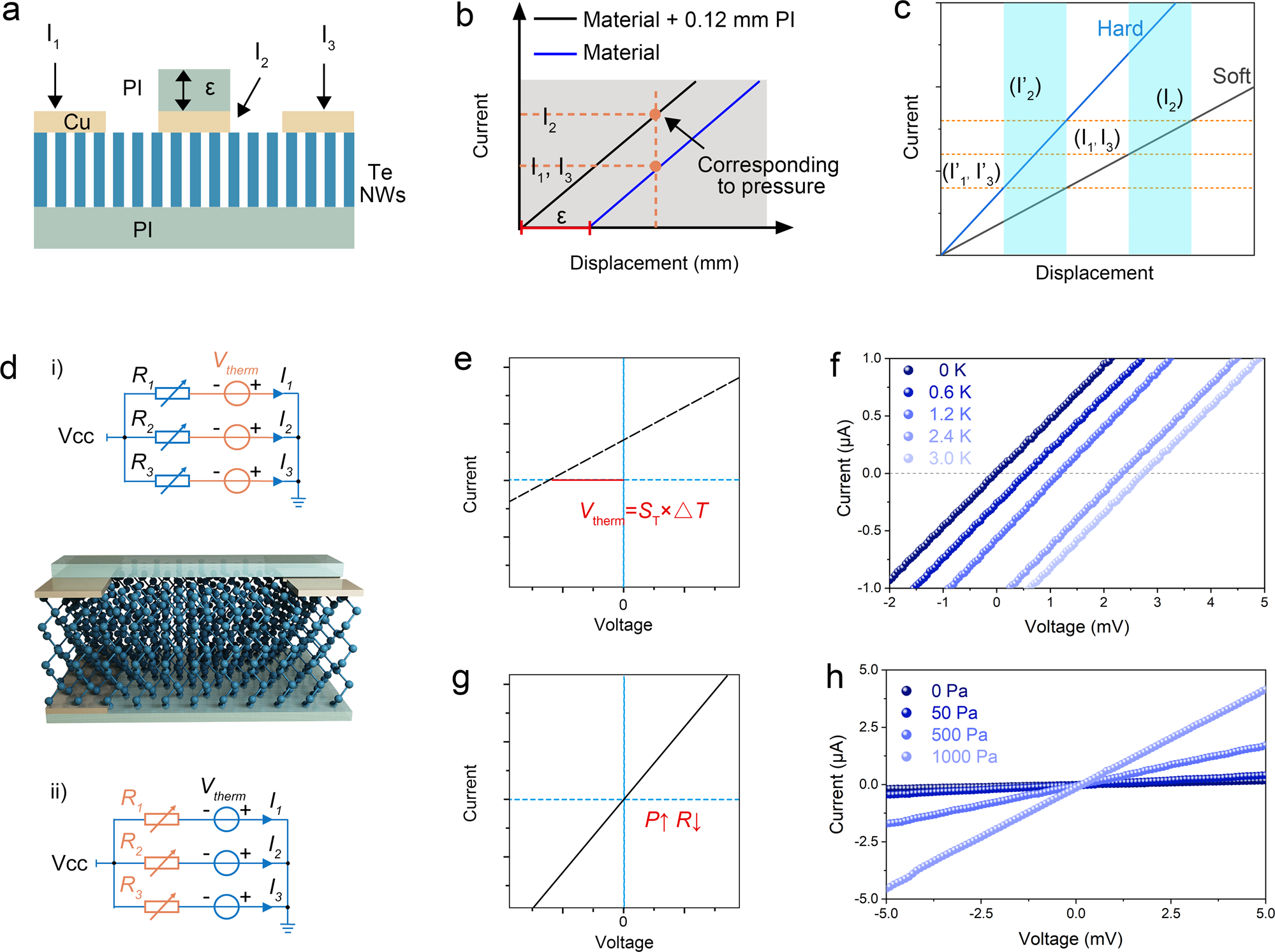

a Cross section structure of the DTS. b Ideal curves of current and displacement in different channels. c Ideal curves of current and displacement for materials to be identified with different hardness. d Decoupling mechanism of two signals in DTS. The ideal IV curve for both stimulus signals: e temperature difference and g stress. f The IV curves of DTS under different temperature differences. h The IV curves of DTS under different stress.
