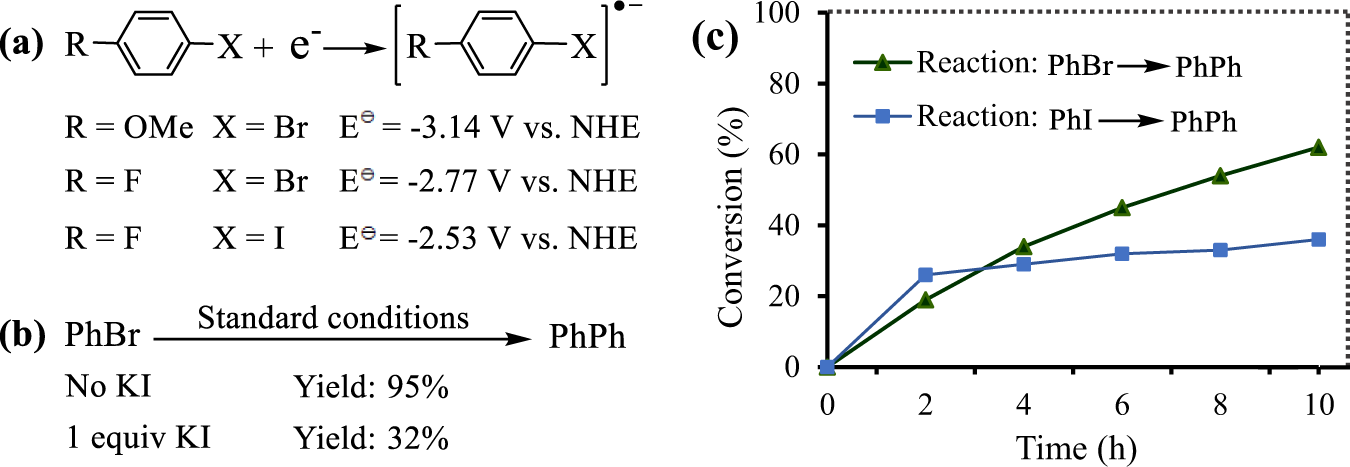

Fig. 6: Effect of substituents or halogen ions.
From: Coupling photocatalytic water oxidation with reductive transformations of organic molecules
a Standard redox potential (E) of phenyl halides with different substituents. NHE represents a normal hydrogen electrode. b Effect of I- on the reaction. For standard conditions, see Fig. 5. c Time course of the conversion of bromobenzene (green) and iodobenzene (blue). PhBr: bromobenzene, PhI: iodobenzene, PhPh represents biphenyl. Source data are provided as a Source Data file.
