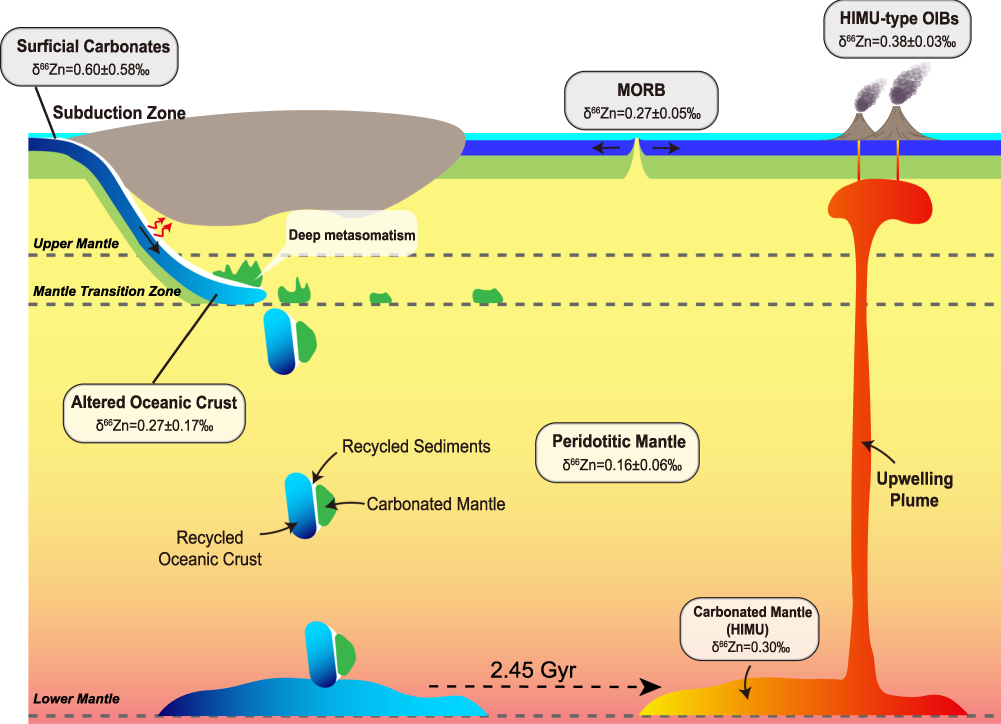

Fig. 4: Cartoon depicting the proposed genesis of HIMU component.

From: Zinc isotopic evidence for recycled carbonate in the deep mantle

Fig. 4: Cartoon depicting the proposed genesis of HIMU component.The alternative text for this image may have been generated using AI.

Estimated average Zn isotopic compositions for various reservoirs are also shown. The average values for MORB, altered oceanic crust and sedimentary carbonates are calculated by data measured in this study and data from reference. All data source for Fig. 4 is given in Supplementary Information, Note 6. The average value for carbonated mantle is assumed in this study. Estimated δ66Zn value of peridotitic mantle is taken from ref. 27. MORB = Mid-Ocean Ridge Basalt; OIB = Ocean Island Basalt; HIMU = high μ (μ = 238U/204Pb).
