Fig. 1: Morphologies and facet constitutions.
From: Facet effect of hematite on the hydrolysis of phthalate esters under ambient humidity conditions

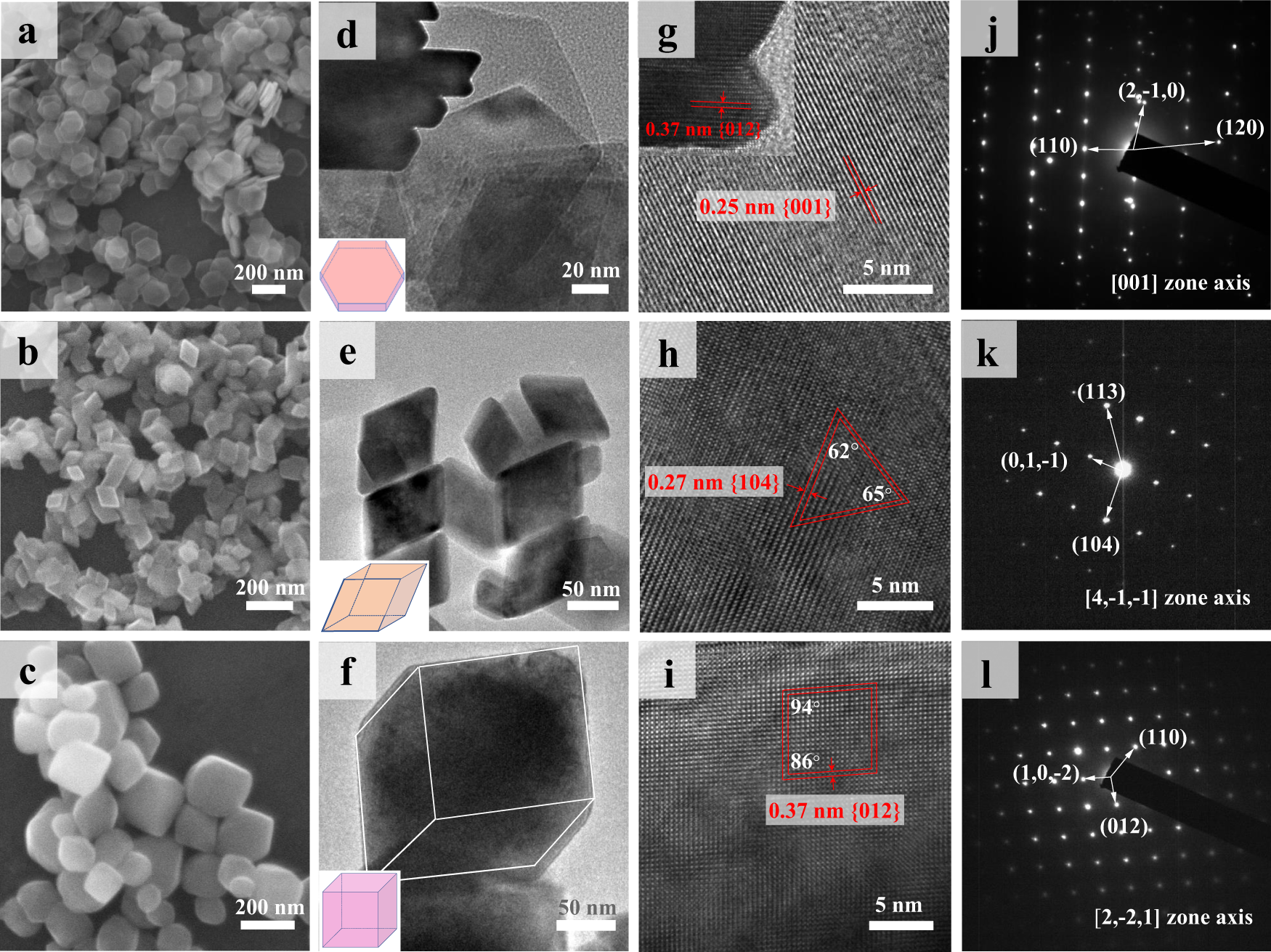

SEM images (a–c), high-magnification TEM images (d–f), HRTEM images (g–i) and corresponding SAED patterns (j–l) of hematite nanoplate (HNP) (a, d, g, j), hematite nano-rhombohedra (HNR) (b, e, h, k), and hematite nano-cube (HNC) (c, f, i, l). The insets in panels d–f are their geometric models.
