Fig. 1: Schematic of the CFEJ printing system and process.

From: Large area polymer semiconductor sub-microwire arrays by coaxial focused electrohydrodynamic jet printing for high-performance OFETs

Fig. 1

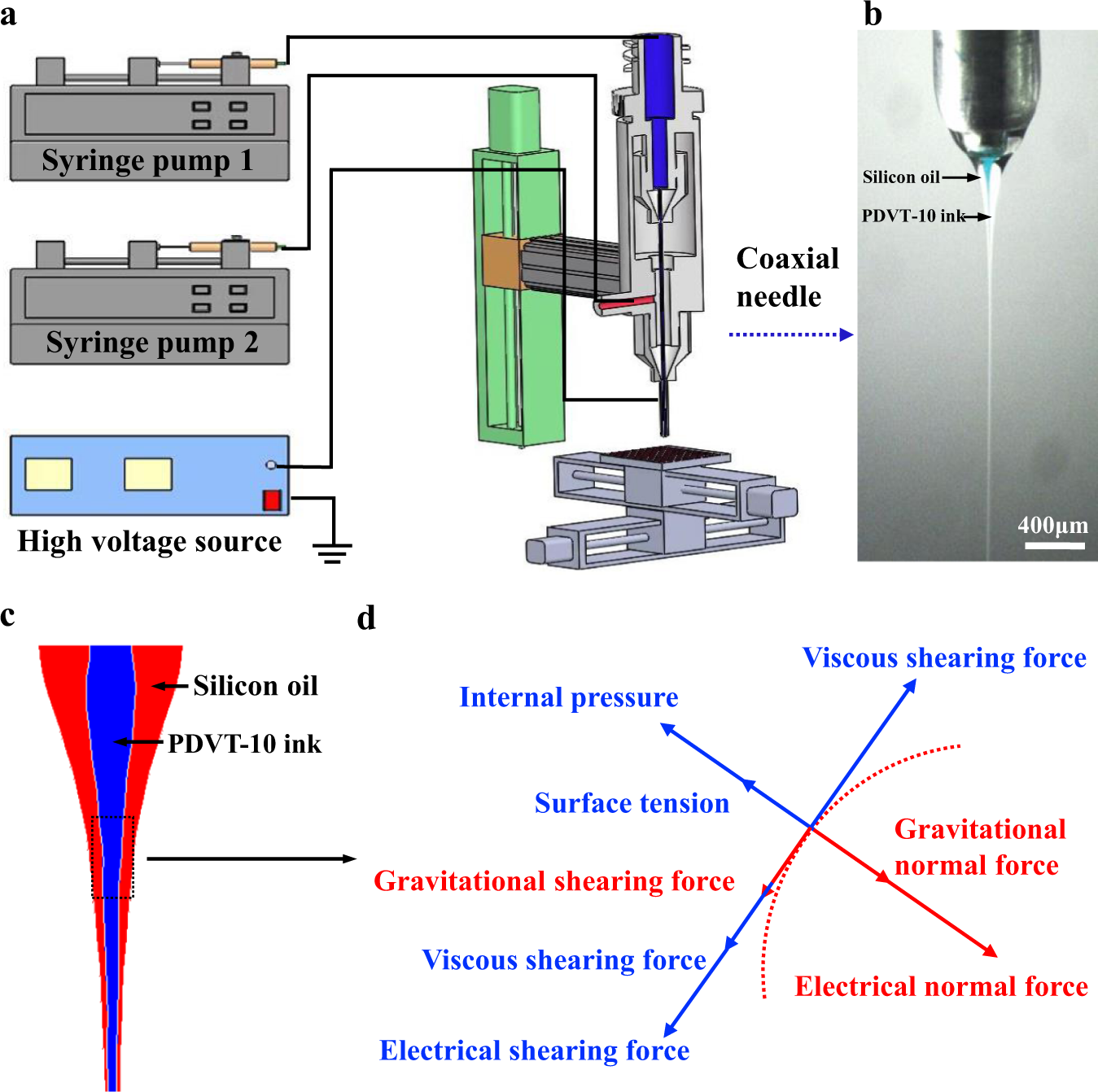

a Schematic of the printing equipment and the coaxial nozzle. b Morphology of the coaxial jet during the printing process. c, d Schematic of the coaxial jet and forces acting on the coaxial jet, where the blue part is the internal PDVT-10 ink and the red part is the external silicon oil.
