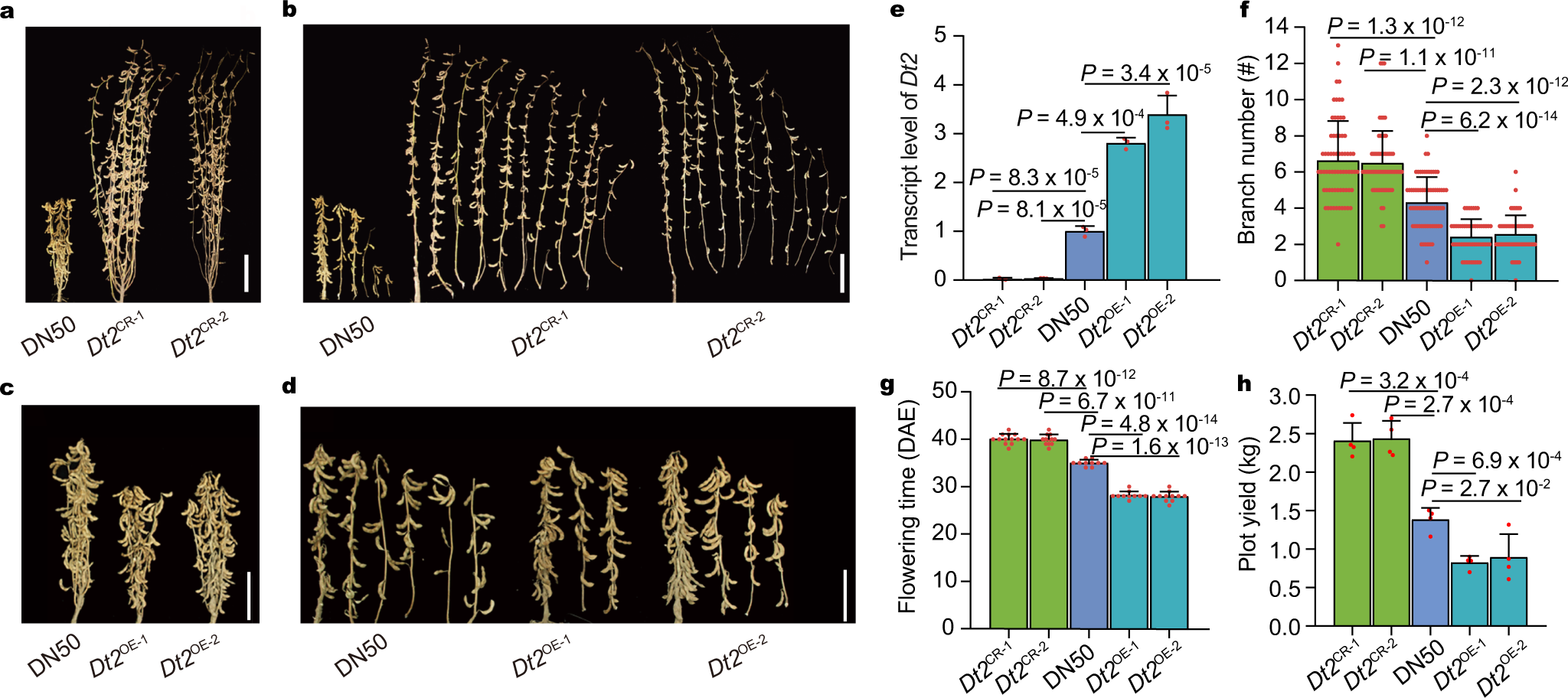

Fig. 2: Dt2 negatively regulates the branch number.
From: Natural variation of Dt2 determines branching in soybean
a Architecture of DN50 and Dt2CR plants at the harvest stage. b Branching ability of DN50 and Dt2CR after harvest. c Architecture of DN50 and Dt2OE plants at the harvest stage. d Branching ability of DN50 and Dt2OE after harvest. e Relative expression level of Dt2 in DN50 and different transgenic lines (n = 3 biologically independent replicates). f Branch number of DN50, Dt2CR and Dt2OE lines (n = 70 biologically independent plants). g Flowering time of DN50, Dt2CR and Dt2OE lines (n = 30 biologically independent plants). DAE indicates days after emergence. h Plot yield of DN50, Dt2CR and Dt2OE (n = 4 biologically independent replicates). The plot area is 10 m2. Scale bars in the (a–d) are 10 cm. Data in (e–h) are the mean ± SEM. Statistical significance is determined using a two-sided t-test. Source data are provided as a Source Data file.
