Fig. 5: CNG channel on-pathway gating intermediates.

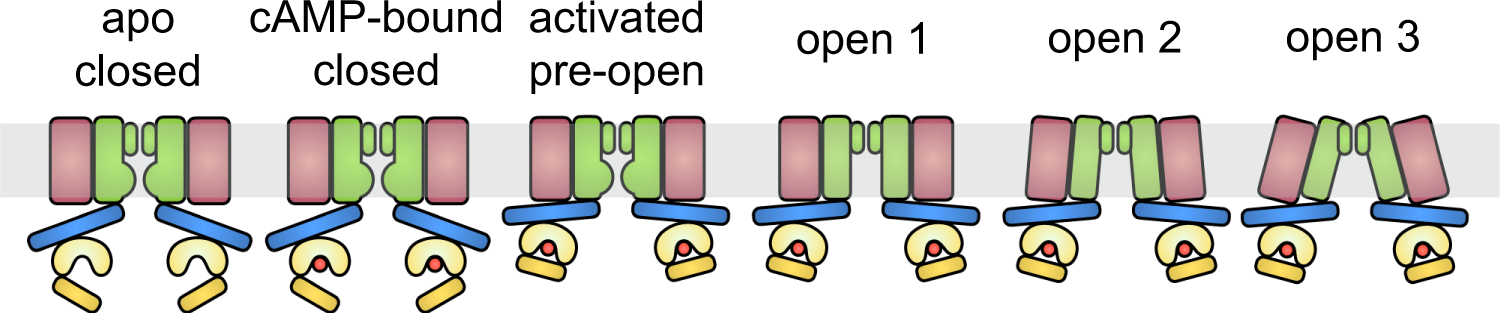

Schematic model of CNG channel gating from an apo closed state, to the fully open state including intermediate states identified in this study. Channels are represented as VSD (red), pore domain (green), C-linker (blue), CNBD (yellow), and cAMP (orange). Membrane is indicated in gray.
