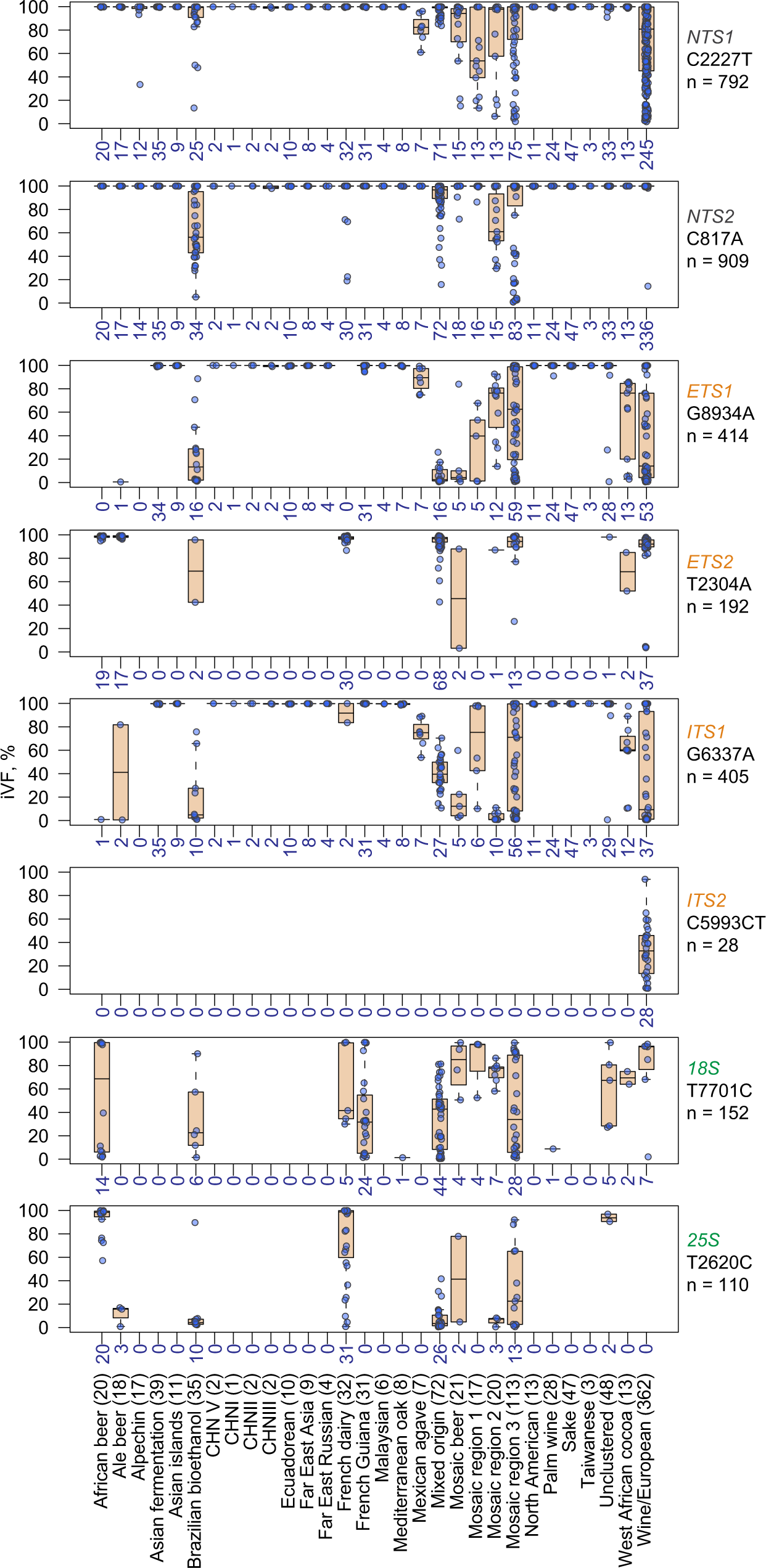

Fig. 4: Box plot distribution of the topmost abundant rDNA variants in each rDNA element across clades.
From: Varying strength of selection contributes to the intragenomic diversity of rRNA genes
Numbers indicate both the number of isolates with a variant per clade and the number of iVFPs of a specific variant, since one isolate can only have one iVFP of each variant per plot (also shown as dots). The center line in the red box plot is the median, box limits are 25th and 75th percentiles, and the whiskers extend to Âħ1.5xIQR. Source data are provided as a Source data file.
