Fig. 3: The erosional footprint of the EIS.

From: The extreme yet transient nature of glacial erosion

Fig. 3

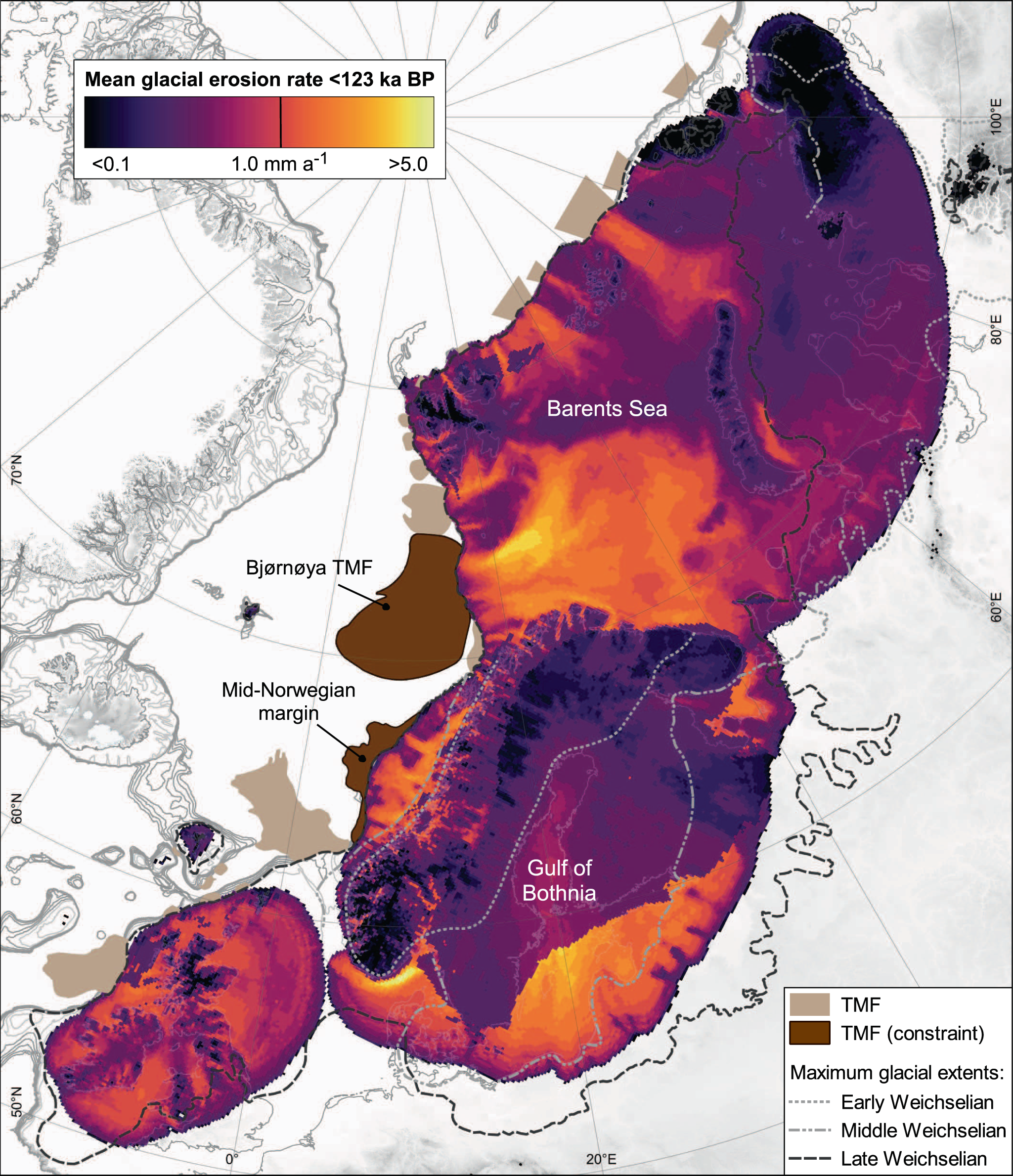

Subglacial erosion over the last 123 ka, normalized for ice occupancy. Empirical-based limits of glaciation and the trough mouth fans (TMF)104, 105 used to constrain glacial erosion rates in Platform (Bjørnøyrenna) and Younger Basement (mid-Norwegian margin) provinces are highlighted.
