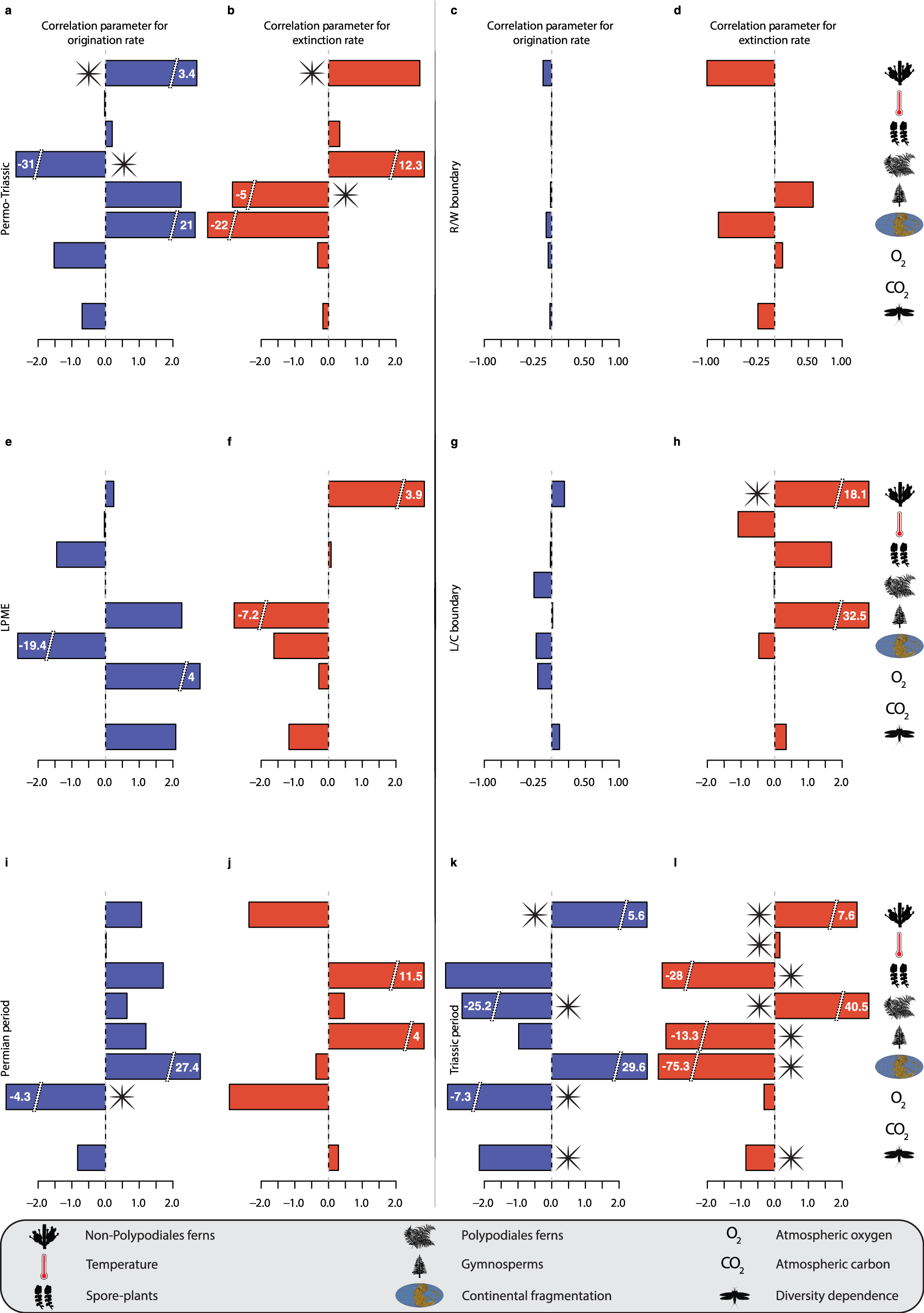

Fig. 3: Paleoenvironmental correlates and potential drivers of the dynamics of insects.
From: Multiple drivers and lineage-specific insect extinctions during the Permo–Triassic
Bayesian inferences of correlation parameters on origination (blue: a, c, e, g, i, k) and extinction (red: b, d, f, h, j, l) with abiotic factors like global temperature, continental fragmentation, global variation of atmospheric CO2 and O2; with biotic factors like relative diversity through time of Polypodiales ferns, non-Polypodiales ferns, Gymnosperms and spore-plants; and diversity-dependence factors with diversity through time of insect genera. Stars indicate a significant correlation parameter for a given variable (shrinkage weights (ω) > 0.5). Colour and abbreviations as in Fig. 1. Silhouettes from http://phylopic.org/. Gnetophyta (by Curtis Clark and T. Michael Keesey), Polypodiales ferns (by Olegivvit) licences at https://creativecommons.org/licenses/by-sa/3.0/; Hepaticae, Gymnosperm, Palaeodictyoptera, licences at https://creativecommons.org/publicdomain/zero/1.0/. Palaeomap (by Eikeskog1225; licence at https://creativecommons.org/licenses/by-sa/4.0/). Other items made by Corentin Jouault.
