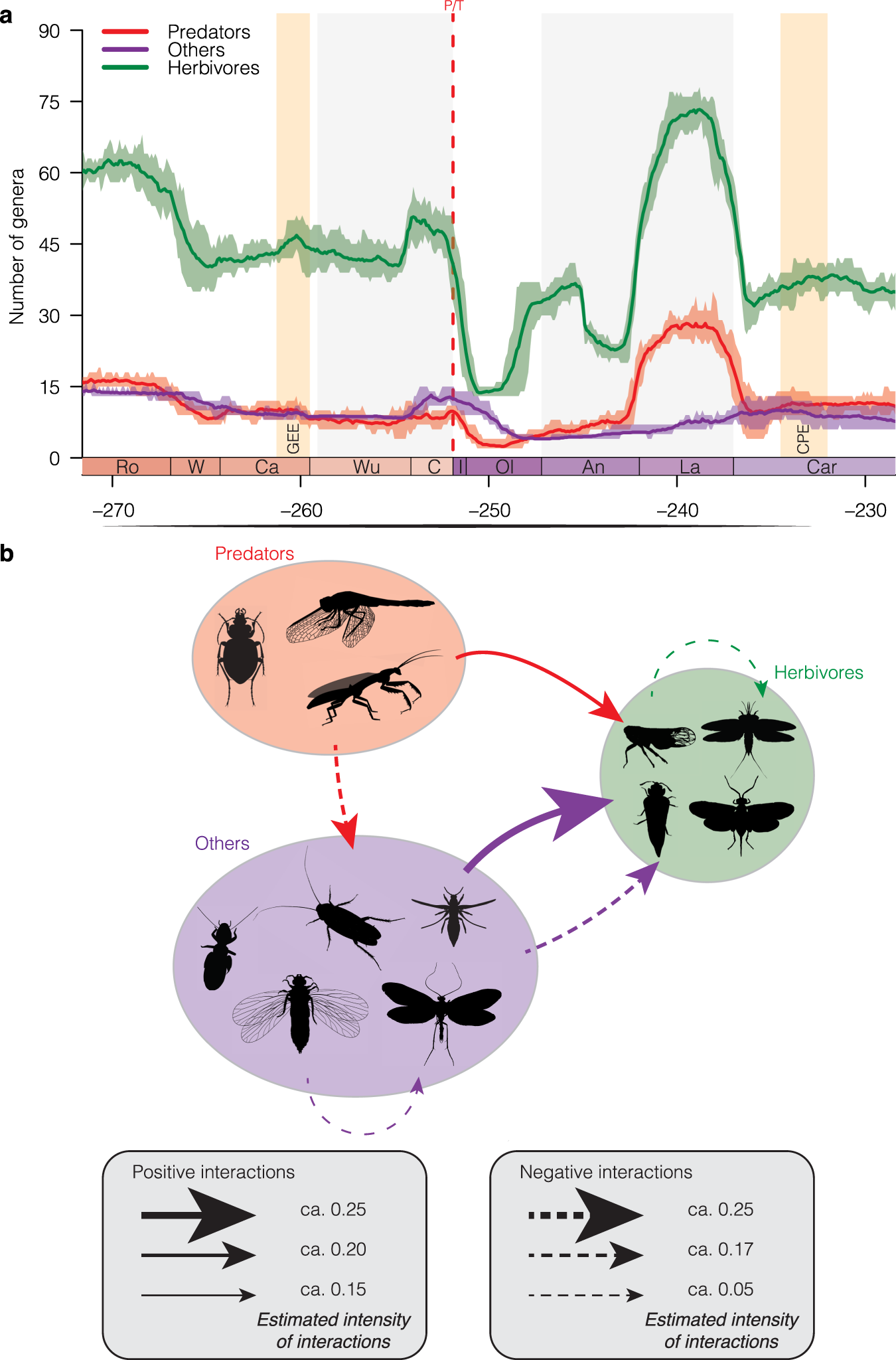

Fig. 4: Diversity trajectories and the effect of diversity dependence or facilitation for guilds of insects.
From: Multiple drivers and lineage-specific insect extinctions during the Permo–Triassic
a Diversity trajectories of three guilds of insects between Roadian and Carnian. Reconstructions of diversity trajectories replicated ten times, incorporating uncertainties around the ages of the fossil occurrences. For each plot, solid lines indicate mean posterior rates; shaded areas show 95% CI. b Network showing positive and negative interactions within and between guilds (only significant correlations are shown). Each arrow indicates the intensity of interaction imposed by a given guild toward another one. Colour and abbreviations as in Fig. 1. Silhouettes from http://phylopic.org/. Titanoptera (by Melissa Broussard), and Trichoptera (by Didier Descouens; vectorized by T. Michael Keesey) licences at https://creativecommons.org/licenses/by-sa/3.0/; Coleoptera, Dictyoptera, Hemiptera, Hymenoptera, Odonatoptera, Mecoptera, Miomoptera, Palaeodictyoptera, Plecoptera and Psocodea licences at https://creativecommons.org/publicdomain/zero/1.0/; Dermaptera, Thysanoptera and Coleoptera by Corentin Jouault.
