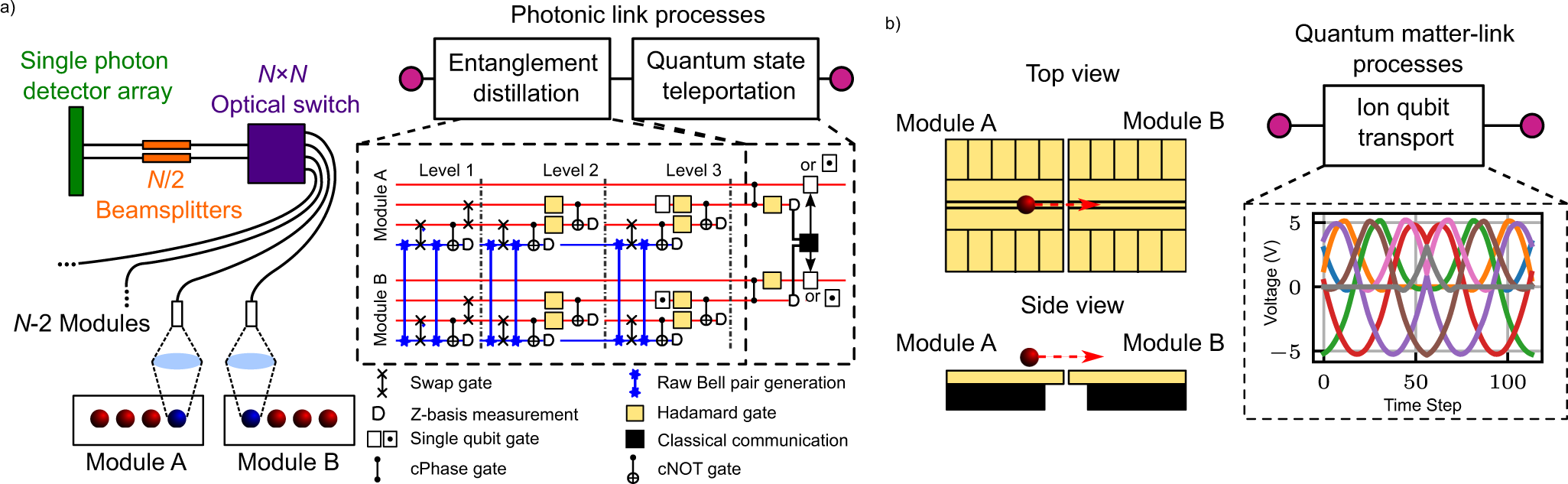

Fig. 1: An illustration of the process for connecting two modules (Module A and Module B) for the purposes of a modular ion-trap QC.

a Photonic links use probabilistic, heralded entanglement which is generated from the interference of emitted photons from each module. The red and blue spheres denote different ion species. An N × N optical switch links the modules, where N is the number of modules. The emitted photons interfere at the beam splitter and a single photon detector array is used to herald the generation of entanglement between modules. In order to generate a high-fidelity link between modules a distillation process is required. The dashed box represents a proposal for a 3-level distillation process that would take a 94% entanglement fidelity to 99.7% fidelity, more details can be found in Ref. ⁴⁸. After distillation, quantum teleportation can then be used to map the qubit state between modules, thereby completing the information transfer. A similar protocol involving measurement, single qubit rotations and classical communications can also be used to execute a remote two-qubit gate. b Linking modules using ion qubit transport. DC voltage waveforms control the ion motion such that the ion qubit is physically transported between the modules. The dashed box contains a plot of the voltage shuttling waveforms used in this work, each plot colour denotes the voltage evolution of a different DC electrode. Here the modules are depicted as surface traps but other geometries are also applicable. This method does not require quantum gates. Furthermore, for information transfer in a QC architecture based on quantum matter-links, multi-species gates are not necessary.
