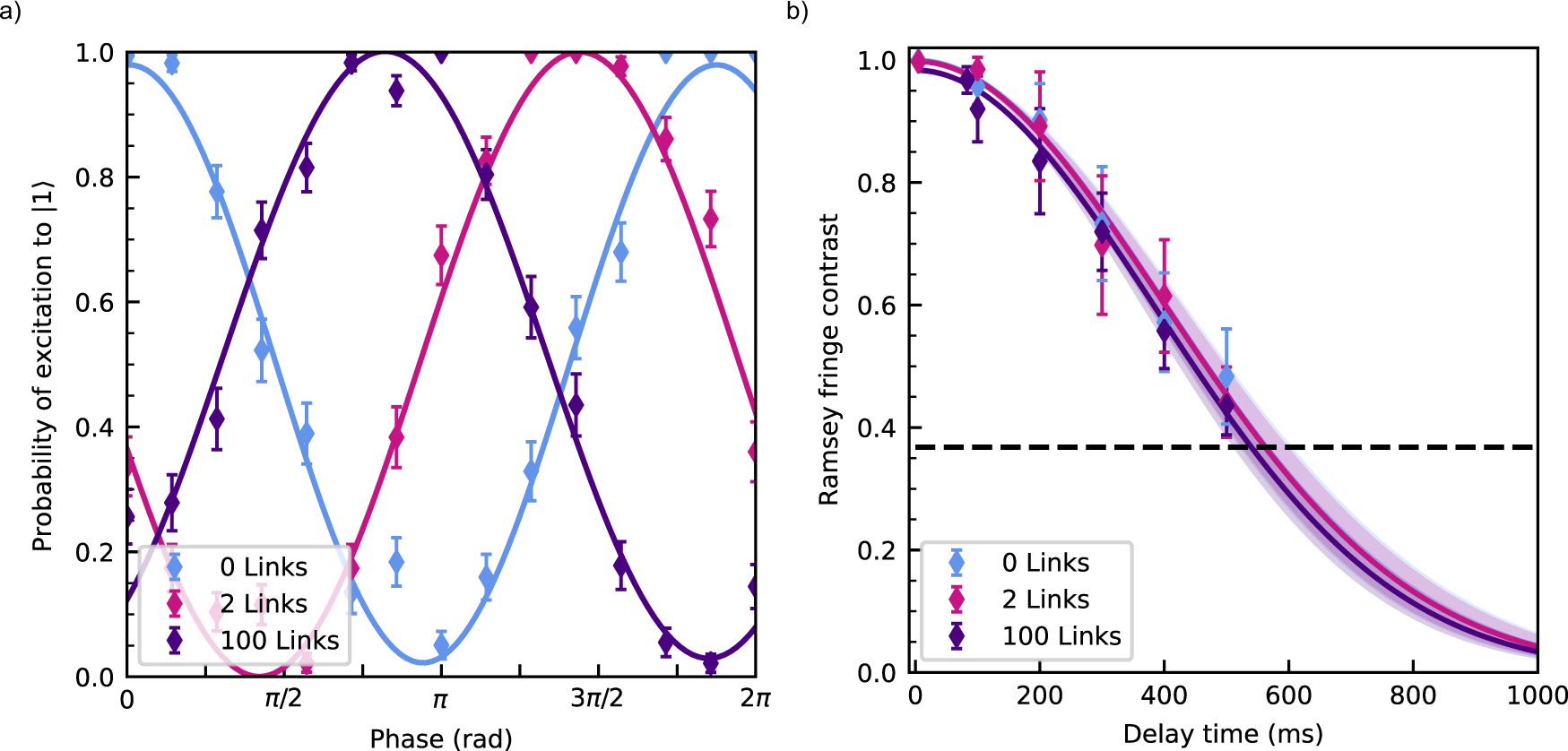

Fig. 4: Ramsey interferometry.

a Ramsey fringes measured after 0, 2 and 100 links. The solid lines represent a sinusoidal fit to the data. For each dataset τ = 100 ms, 100 averages were taken per data point. Error bars are standard deviations. The Ramsey fringe contrasts are found to be 0.96(2), 1.00(2) and 0.97(2) for 0, 2 and 100 links respectively. b The Ramsey fringe contrast as a function of time for 0, 2 and 100 links. The error bars represent the standard deviation in the measured contrast for a given time delay. The Gaussian fit to each dataset is given by the solid lines and the associated shaded areas represent the 1-sigma error in the fit. The dashed line indicates the 1/e decoherence threshold. The coherence times are 560(40) ms, 560(40) ms and 540(30) ms for 0, 2 and 100 links respectively.
