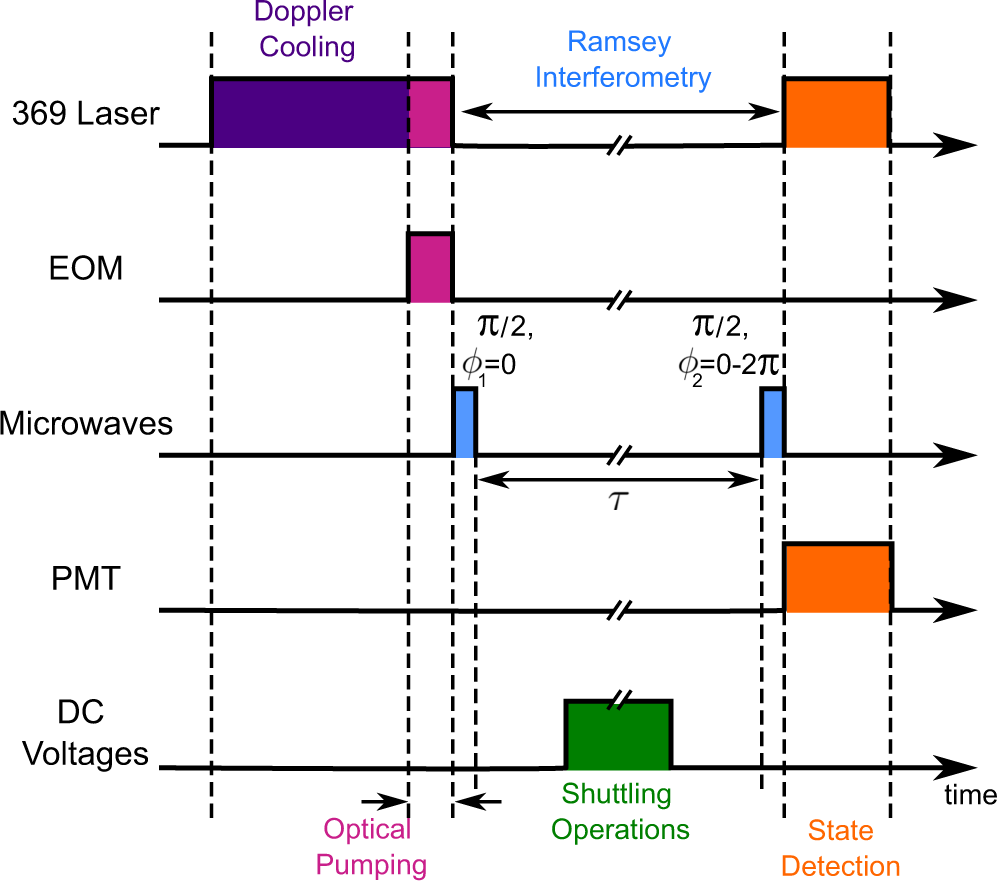

Fig. 5: Pulse sequence diagram for the Ramsey-type experiment.
From: A high-fidelity quantum matter-link between ion-trap microchip modules
The relative times of the different processes are represented on the same time axis (not to scale). From the top down the axes are: the on/off times for the 369.5 nm Doppler cooling laser, the electro-optic modulator (EOM) for optical pumping, the microwaves resonant with the qubit transition, the PMT for detection and the DC system for shuttling.
