Fig. 4: Promoter nucleosome eviction by the cohesin loader.
From: Functional crosstalk between the cohesin loader and chromatin remodelers

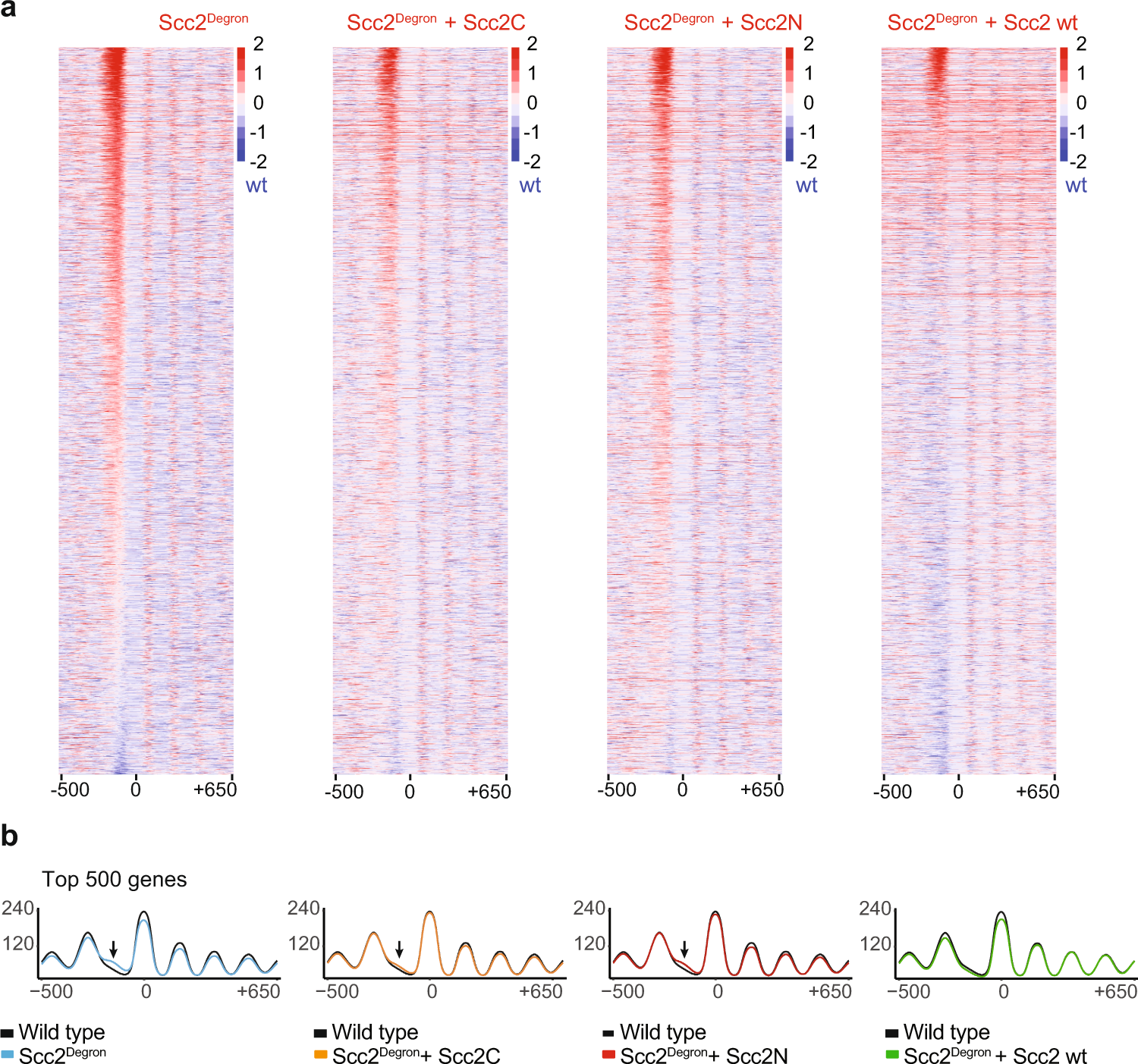

a Differential nucleosome positioning heat maps, centered on the +1 nucleosome midpoint, comparing the indicated conditions to a wt control strain (scale, log2). b Average nucleosome occupancy profiles at the 500 gene promoters that showed the greatest difference (within a −150 to −50 interval) between degron and wild type. The arrows point towards increased nucleosome occupancy. Average nucleosome profiles at all genes, and at all those genes previously identified as cohesin loader binding sites13 can be found in Supplementary Fig. 6c. A repeat experiment is shown in Supplementary Fig. 6a, b.
