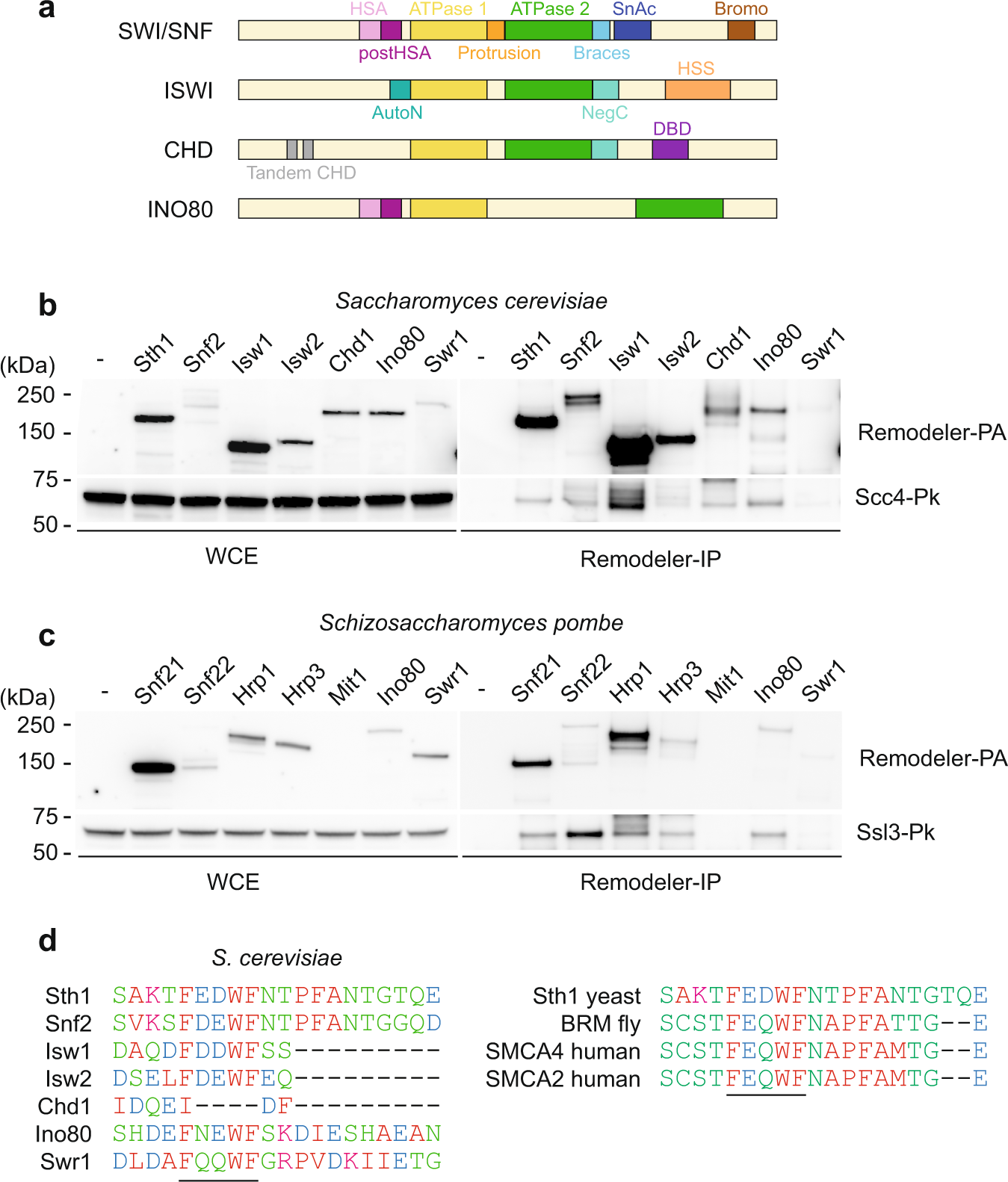

Fig. 5: Widespread cohesin loader interactions with chromatin remodelers.
From: Functional crosstalk between the cohesin loader and chromatin remodelers
a Domain organization of the ATPase subunits of the four remodeler families. b Interactions between the S. cerevisiae remodeler ATPase subunits, pulled down via protein A tags, and the cohesin loader, detected by immunoblotting against Scc4. c As in b, but precipitating the ATPase subunits of S. pombe chromatin remodelers and assessing coprecipitation of the Scc4 ortholog Sls3. These immunoprecipitation (IP) experiments were performed once. d Conservation of an FEDWF motif (underlined) amongst remodeler families and organisms. Clustal (vOmega) was used to prepare the alignment. Source data are provided as a Source Data file.
