Fig. 4: Simulation analysis in Cu, Au, and different Au/CuO.

From: Atomically dispersed golds on degradable zero-valent copper nanocubes augment oxygen driven Fenton-like reaction for effective orthotopic tumor therapy

Fig. 4

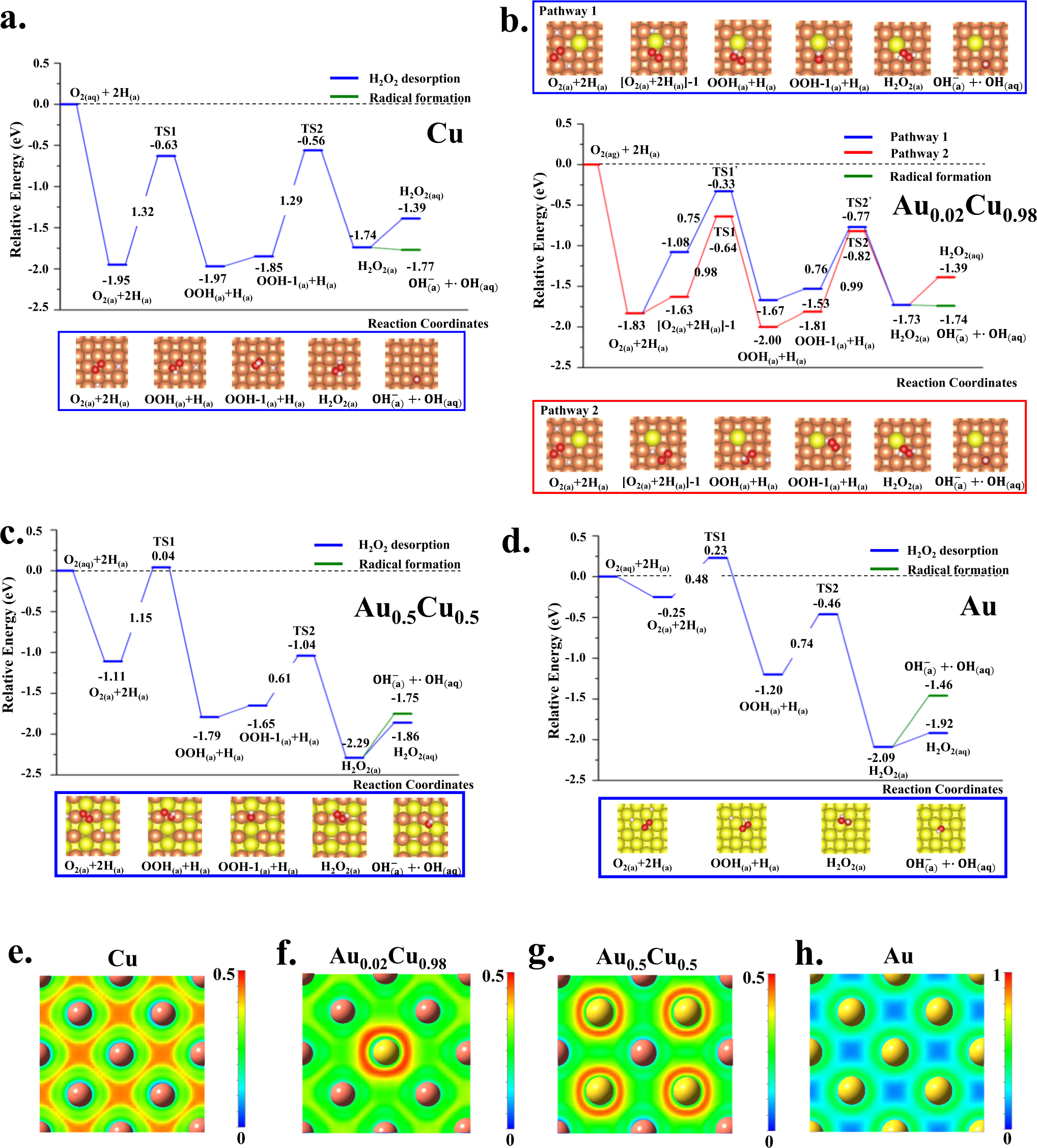

The calculated potential energy profiles for the O2 reduction to H2O2 on the a pure Cu, b Au0.02Cu0.98, c Au0.5Cu0.5, and d pure Au. The calculated electron localization function (ELF) diagrams of the e pure Cu, f Au0.02Cu0.98, g Au0.5Cu0.5, and h pure Au. Brown, gold, red and white spheres represent Cu, Au, O, and H atoms, respectively.
