Fig. 5: Comparing concentration of Pd and the molecular weight with the OECT performance.

From: The effect of residual palladium on the performance of organic electrochemical transistors

Fig. 5

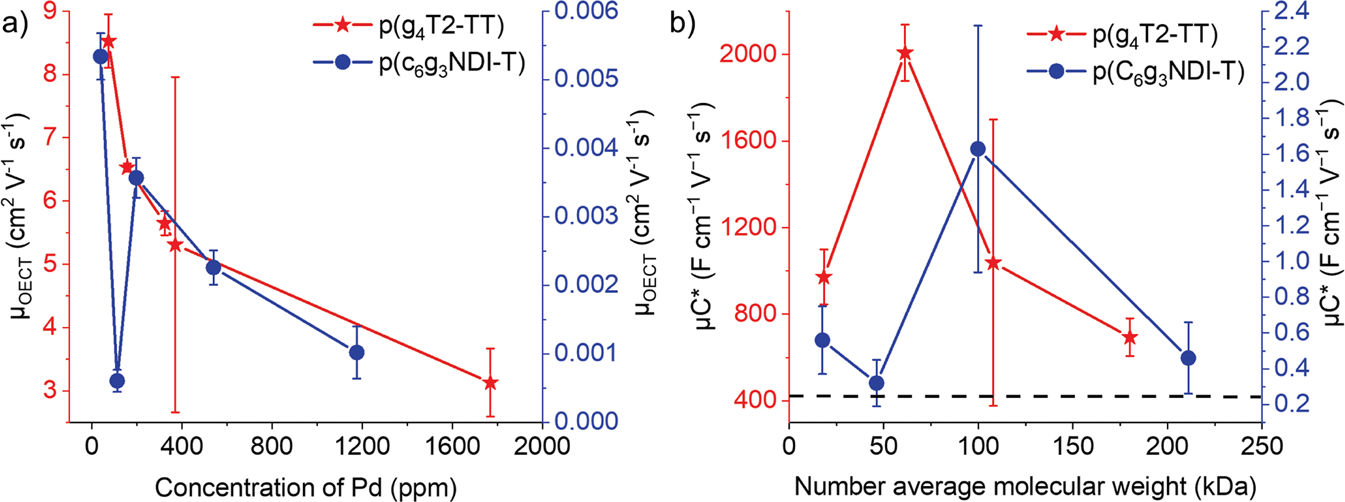

a μOECT as a function of Pd content in ppm for p(g4T2-TT) and p(C6g3NDI-T) and b [μC*] as a function of Mn for p(g4T2-TT) and p(C6g3NDI-T), whereby the dashed line indicates the performance of the polymer pre-fractionation. The error bars are the standard deviation of the data set and µOECT is the calculated OECT mobility.
