Fig. 8: Atomic structure of interface.

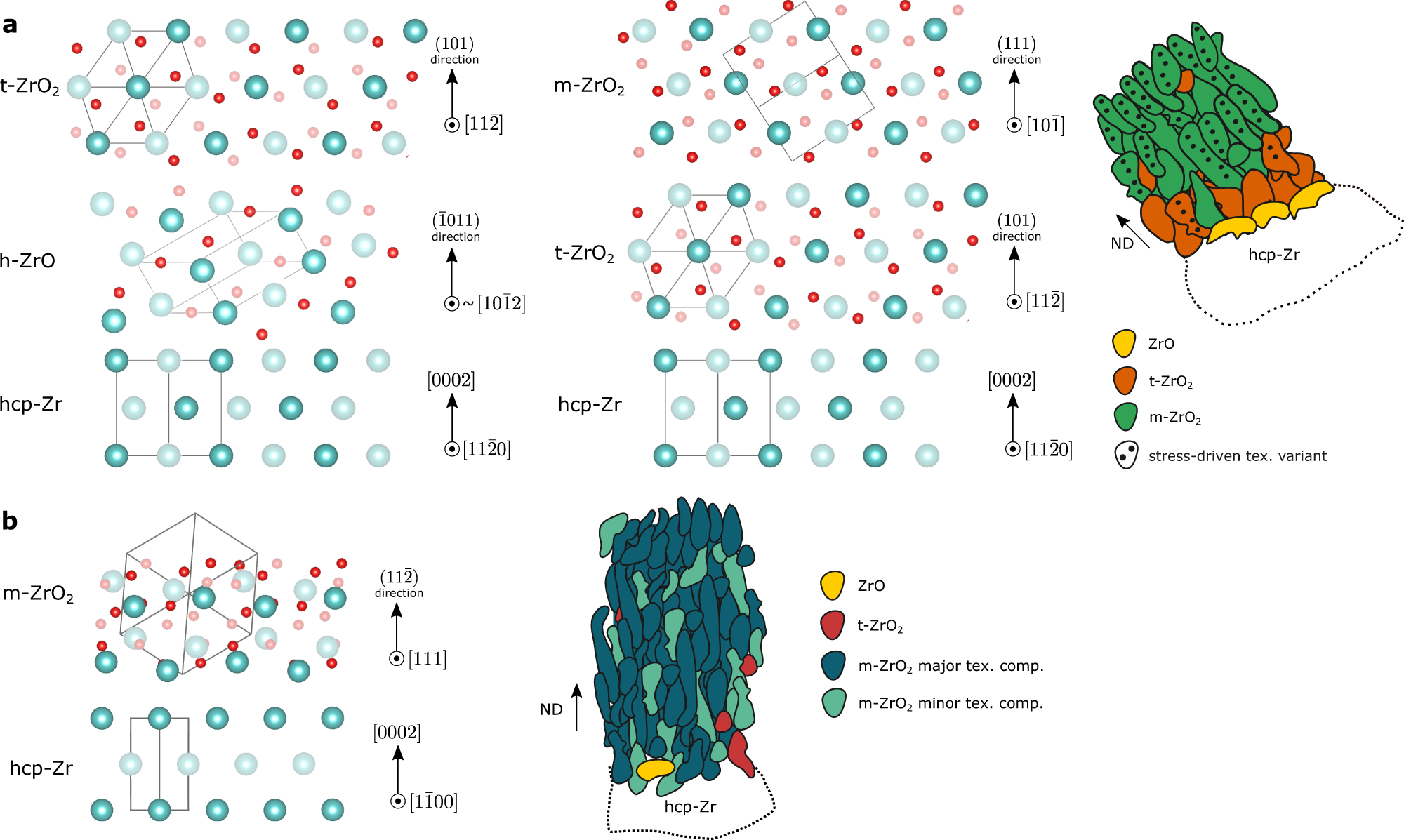

Schematic of the interfaces formed based on the identified orientation relationships. a Region 1: \(\{101\} < 11\bar{2}{ > }_{{{{{{\rm{t}}}}}}-{{{{{{\rm{ZrO}}}}}}}_{2}}||\{\bar{1}011\} < 10\bar{1}2{ > }_{{{{{{\rm{ZrO}}}}}}}||\{0002\} < 11\bar{2}0{ > }_{{{{{{\rm{Zr}}}}}}}\) (left) and \(\{111\} < 10\bar{1}{ > }_{{{{{{\rm{m}}}}}}-{{{{{{\rm{ZrO}}}}}}}_{2}}||\{101\} < 11\bar{2}{ > }_{{{{{{\rm{t}}}}}}-{{{{{{\rm{ZrO}}}}}}}_{2}}||\{0002\} < 11\bar{2}0{ > }_{{{{{{\rm{Zr}}}}}}}\) (right). b Region 2: \(\{11\bar{2}\}\) \( < 111{ > }_{{{{{{\rm{m}}}}}}-{{{{{{\rm{ZrO}}}}}}}_{2}}||\{0002\} < 1\bar{1}00{ > }_{{{{{{\rm{Zr}}}}}}}\). Two atomic planes shown in the out-of-page direction, where shade indicates the atoms’ relative distance and darker atoms are closer to the reader. Blue and red spheres represent Zr and O atoms, respectively. Produced using VESTA69. Schematics of the oxide microstructure show the normal direction and how it relates to the crystal directions for reference.
