Fig. 1: Back scattered electron images of selected melt inclusions.
From: Reply to: Silica is unlikely to be soluble in upper crustal carbonatite melts

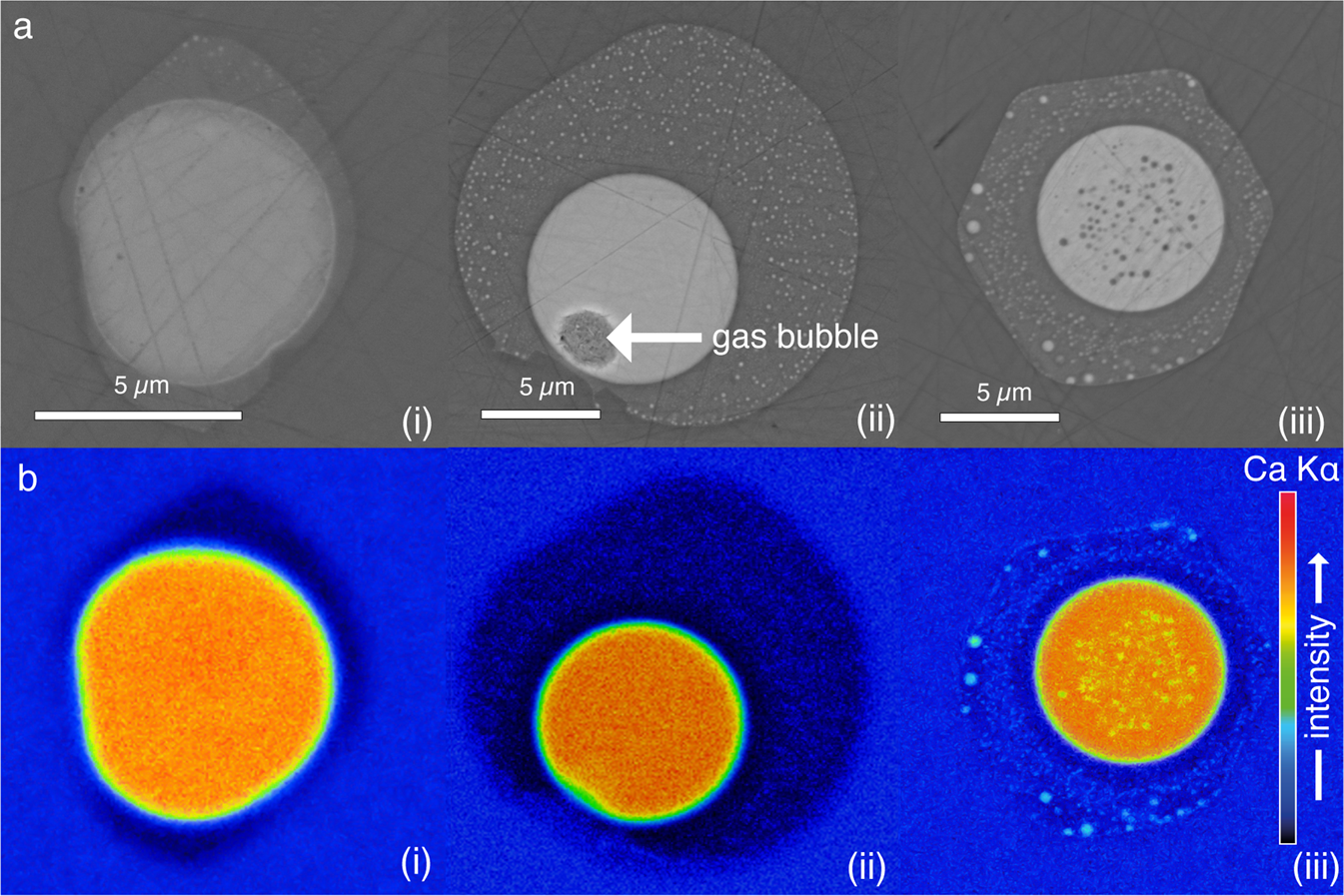

BSE (a) and X-ray intensity maps of Ca K\(\alpha\) (b) of three exemplary melt inclusions. Melt inclusions (i) and (ii) contain no silicate melt droplets (Ls) in the immiscible carbonatite (Lc), neither in BSE images nor in X-ray maps. The melt inclusion (iii) does contain small silicate blebs in the carbonatite. Only melt inclusions without silicate blebs were used for quantitative analyses.
