Fig. 8: The correlation between mean radial fibre tilt angle in individual cells and mean nematic director angle in microcultures.

From: Actin polymerisation and crosslinking drive left-right asymmetry in single cell and cell collectives

Fig. 8: The correlation between mean radial fibre tilt angle in individual cells and mean nematic director angle in microcultures.The alternative text for this image may have been generated using AI.

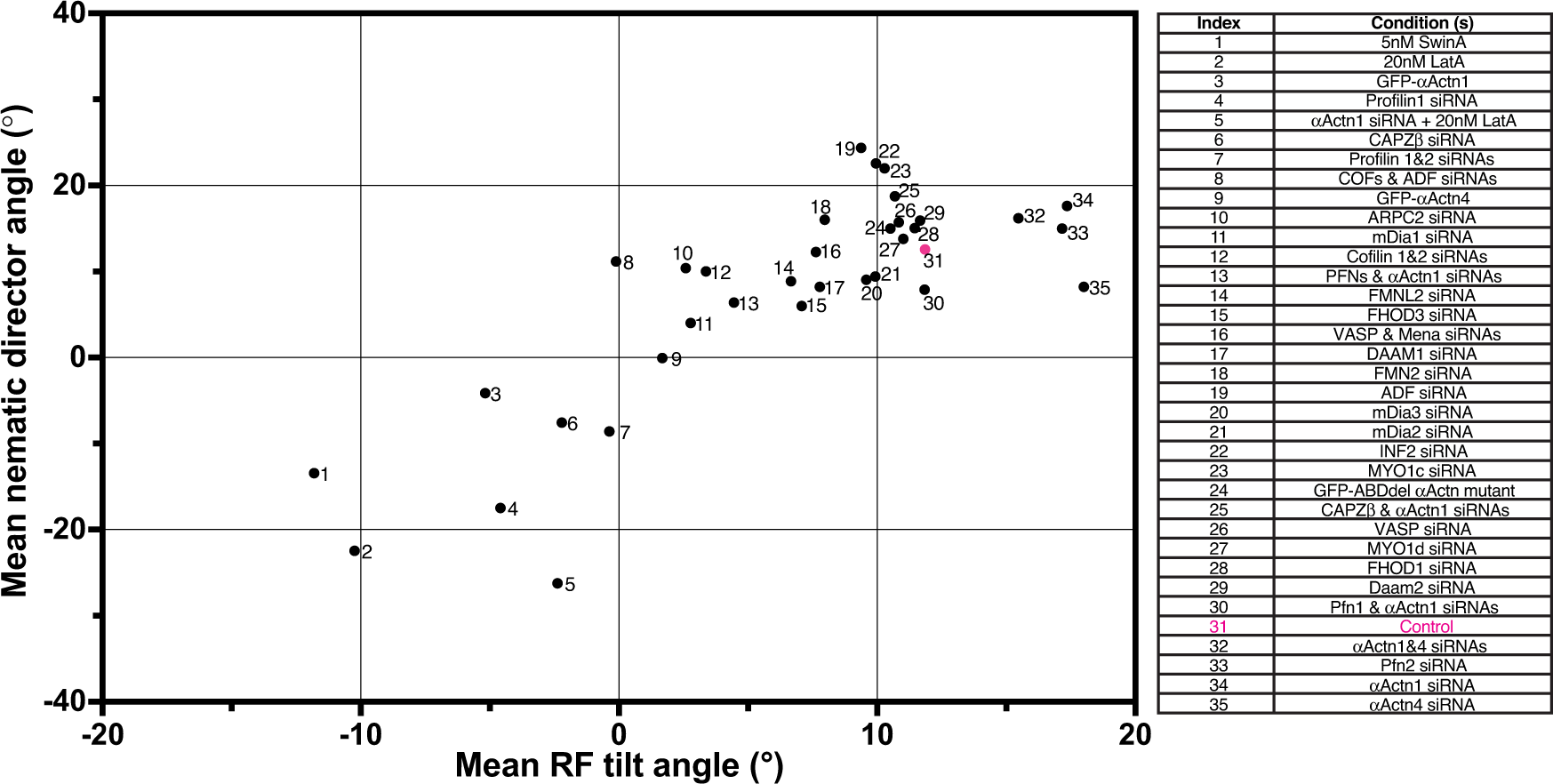

Mean nematic director angles for rectangular microcultures are plotted against mean radial fibre (RF) tilt angles at the 6−10 μm annulus for each type of treatment. Each dot represents average data from pooled experiments under respective conditions as indicated in the list on the right. The data are ordered and indexed according to ascending radial fibre tilt angles (x-axis). Control cell data point is marked by  magenta. Pearson correlation coefficient, r = 0.8104, ****p < 0.0001. Statistical analysis was implemented using GraphPad Prism software. Numbers of cells and microcultures analysed and the values of the means±SEM can be found in Supplementary Table 2. See also Supplementary Fig. 12.
