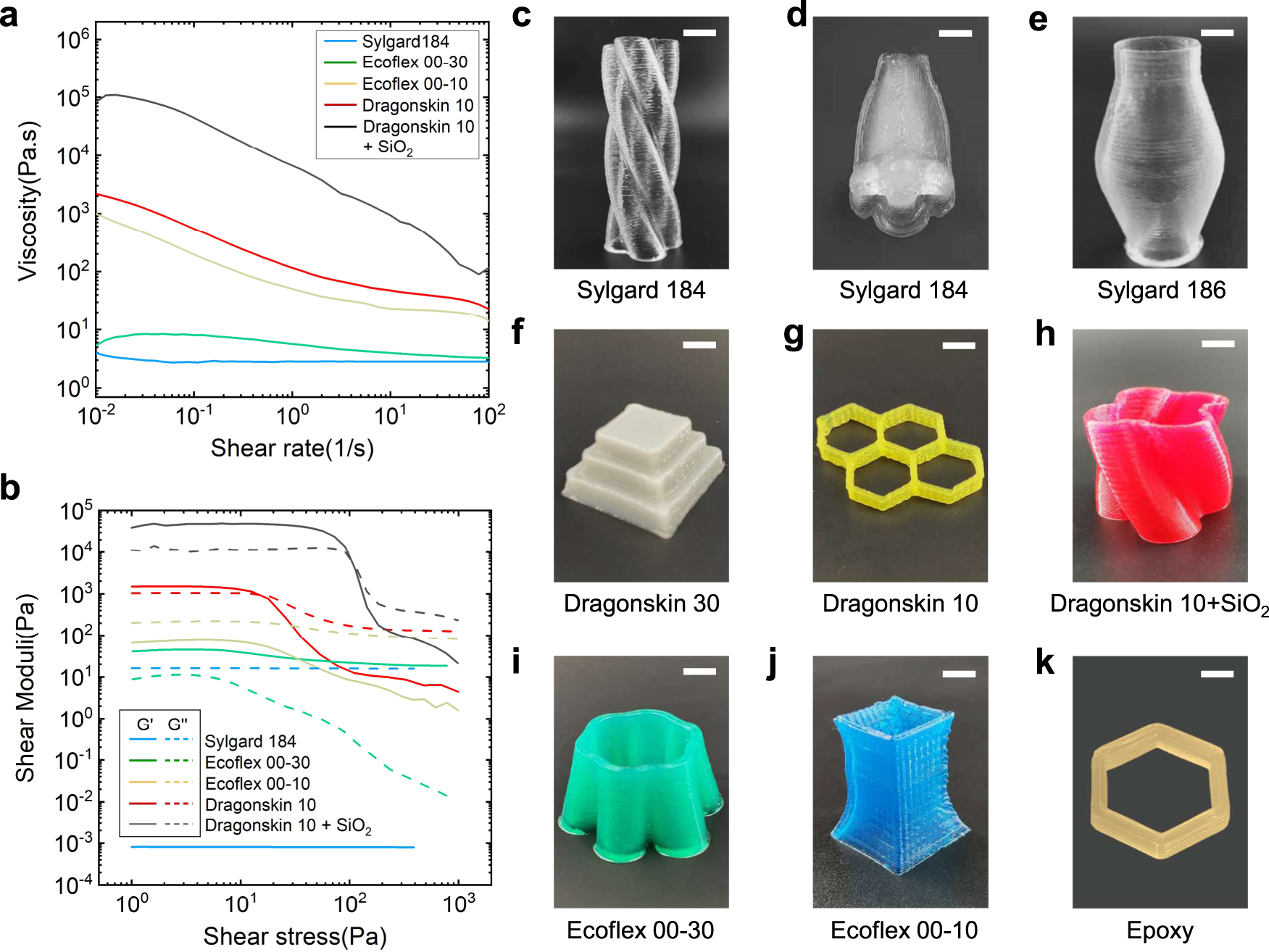

Fig. 4: Demonstration of ISDH-enabled DIW of diverse thermosets.
From: 3D printing of thermosets with diverse rheological and functional applicabilities
a, b Viscosity and shear moduli of some typical thermosetting inks with variable rheological properties. c–k ISDH-printed parts using c, d Sylgard 184; e Sylgard 186; f DragonSkin 30; g DragonSkin 10, h DragonSkin 10 + 20%wt SiO2; i Ecoflex 00-30; j Ecoflex 00−10; k Epoxy. Scale bar = 15 mm for c, d, scale bar = 8 mm for e–g and scale bar = 5 mm for h, k.
