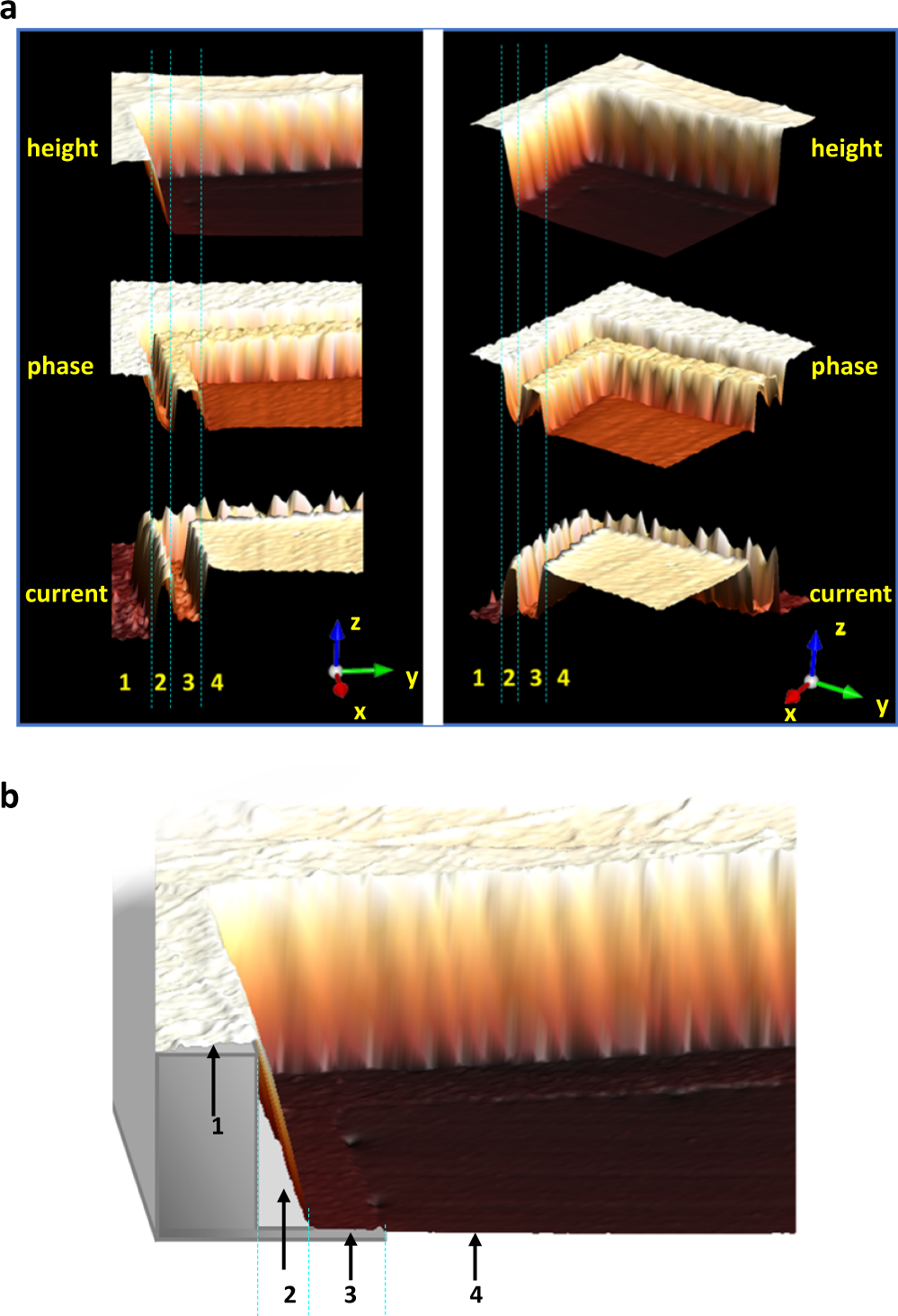

Fig. 3: AFM showing details about how a DPP-3D-COF film is held by the Cu grid.
From: A self-standing three-dimensional covalent organic framework film
a AFM height, phase and current 3D images in two different angles (left and right). Area 1 represents the area of the film supported by the frame of the copper grid, 2 represents the area of the film in a tilted free-standing state, 3 represents the area of the film supported by the inner edge of the copper grid, 4 represents the area of the film in a flat free-standing state. b AFM height image of the film together with a 3D model of the Cu grid. By comparing the edge-to-edge distance of the Cu frame to the effective distance along the film (as calculated using Euclidean geometry), a strain of 9% was calculated.
