Fig. 2: Specific species of Al-GCs and the microstructure of hetero-nanodomains.

From: Self-organized hetero-nanodomains actuating super Li+ conduction in glass ceramics

Fig. 2: Specific species of Al-GCs and the microstructure of hetero-nanodomains.

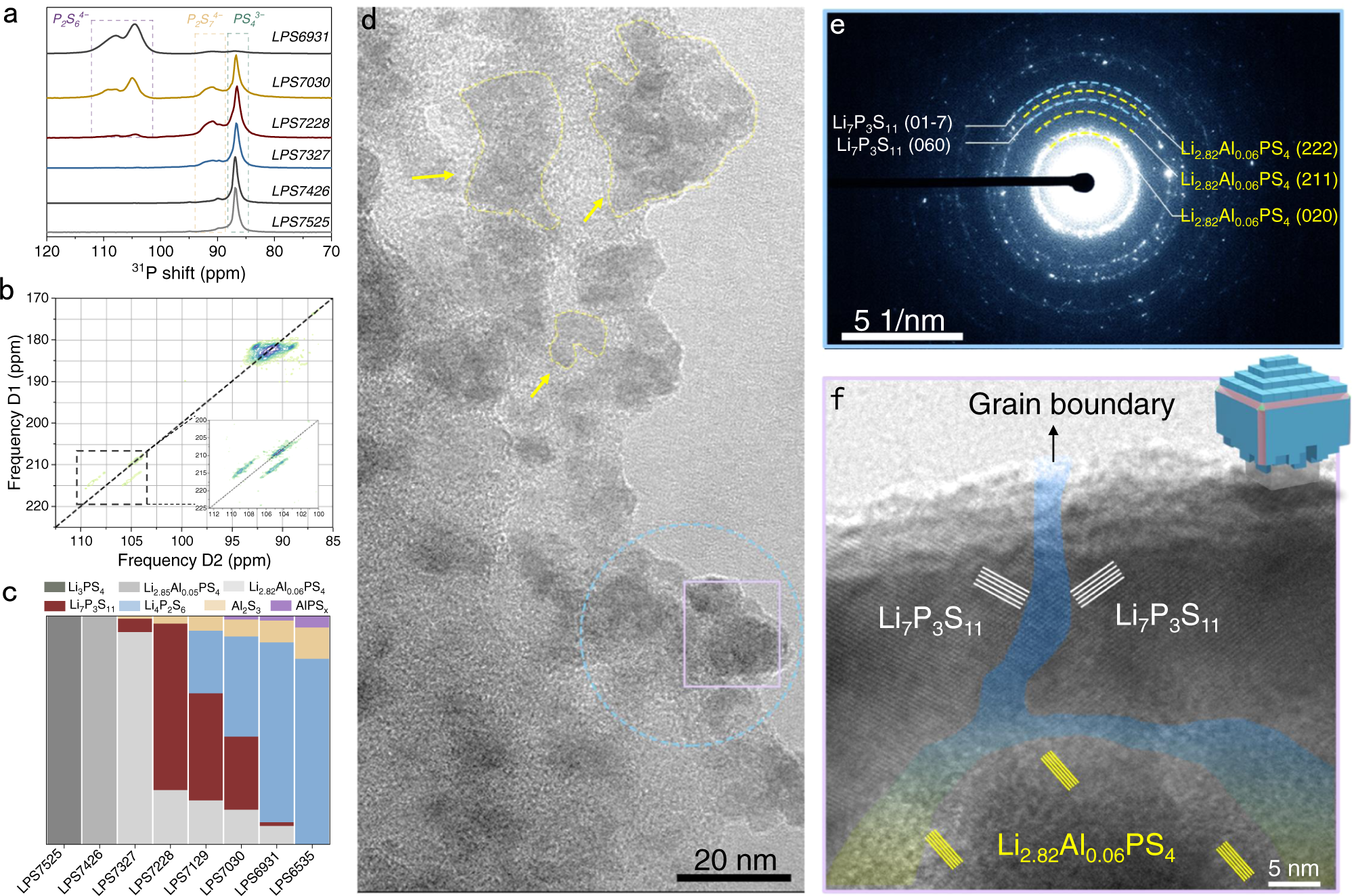

a 31P MAS SSNMR spectra of Al-GCs. b 2D 31P refocused INADEQUATE spectrum of LPS7228. The contour peaks in the 2D spectrum indicate the phosphorous units that are chemically bonded. c Bar graph visualizing the species evolution of Al-GCs with various Li2S: P2S5. d cryo-TEM, e SAED, and f HRTEM images of hetero-nanodomains in LPS7228.
