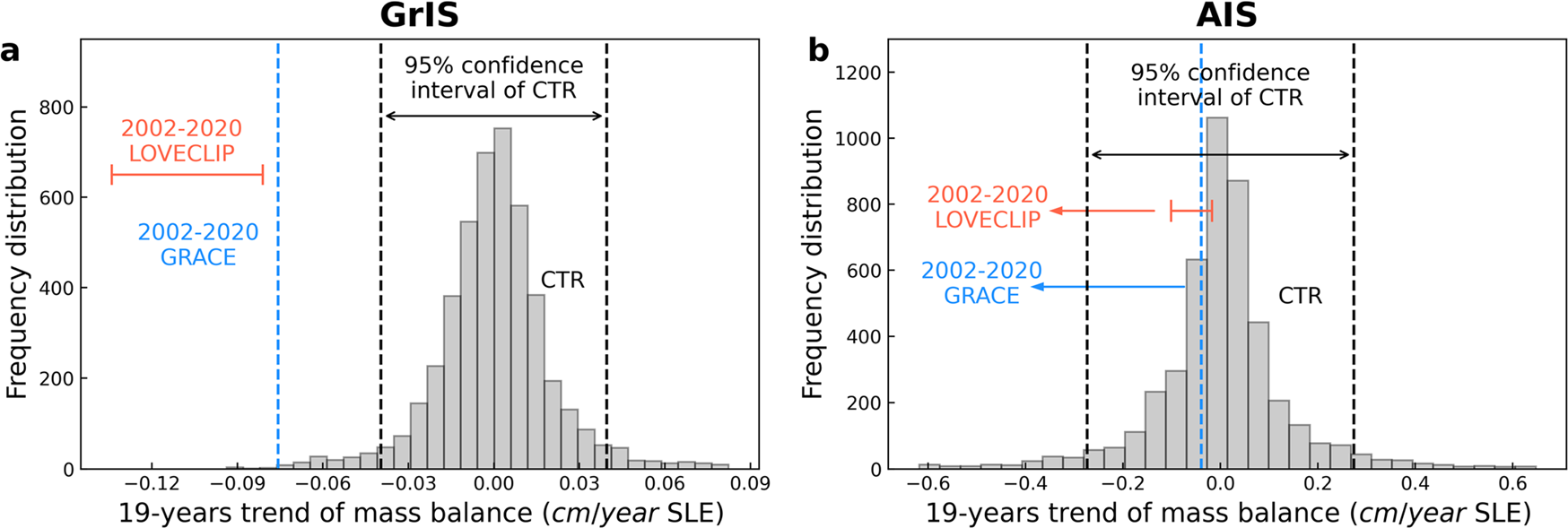

Fig. 1: 19-year trends of observed and simulated mass balance of Greenland ice-sheet (GrIS) and Antarctic ice-sheet (AIS).
From: Future sea-level projections with a coupled atmosphere-ocean-ice-sheet model
a Histogram of each extracted 19-year trend of Greenland mass balance after 80-year-high-pass filtering in the 5000-year-long pre-industrial control run (CTR, gray histogram) with 95% confidence interval range of CTR (black dashed line), and observed estimates of 19-year trend for 2002–2020 CE from the Gravity Recovery and Climate Experiment (GRACE)33 (blue dashed line) and simulated by the forced LOVECLIP ensemble (red line) in sea-level-equivalent (SLE); b same as a, but for Antarctica. Consistent with the GRACE measurements, mass balance terms for LOVECLIM are calculated in this figure using only the grounded ice-sheet portion.
