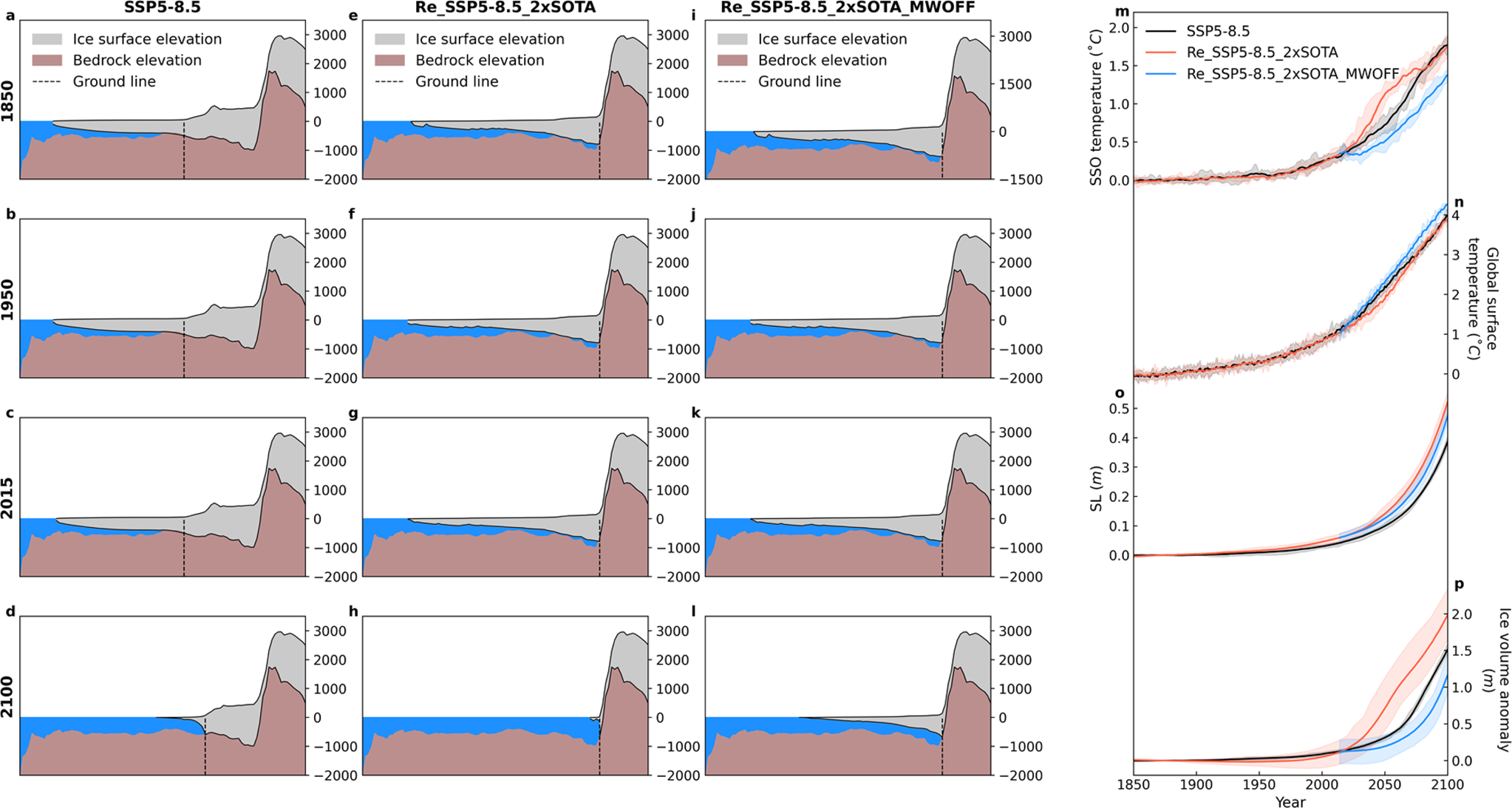

Fig. 6: Transections of the Antarctic Ross ice-shelf, and global temperature and SL.
From: Future sea-level projections with a coupled atmosphere-ocean-ice-sheet model
a–l Transects of Antarctic Ross-ice-shelf simulated in (a–d) SSP5-8.5, (e–h) Re_SSP5-8.5_2xSOTA and (i–l) Re_SSP5-8.5_2xSOTA_MWOFF experiments in 1850, 1950, 2015 and 2100 CE. Dashed lines indicate grounding lines. m–p Time series of annual anomalies (relative to the 1850–1900 CE mean) of (m) subsurface Southern Ocean (SSO) temperature, (n) global surface temperature, (o) sea-level (SL) and (p) Antarctic ice-sheet (AIS) net mass balance in sea-level-equivalent (SLE). Different colors represent the SSP5-8.5 with historical (black line), Re_SSP5-8.5_2xSOTA (red line) and Re_SSP5-8.5_2xSOTA_MWOFF (blue line) simulations. Horizontal scales of a–l are shown in Supplementary Fig. S9 as a red line.
