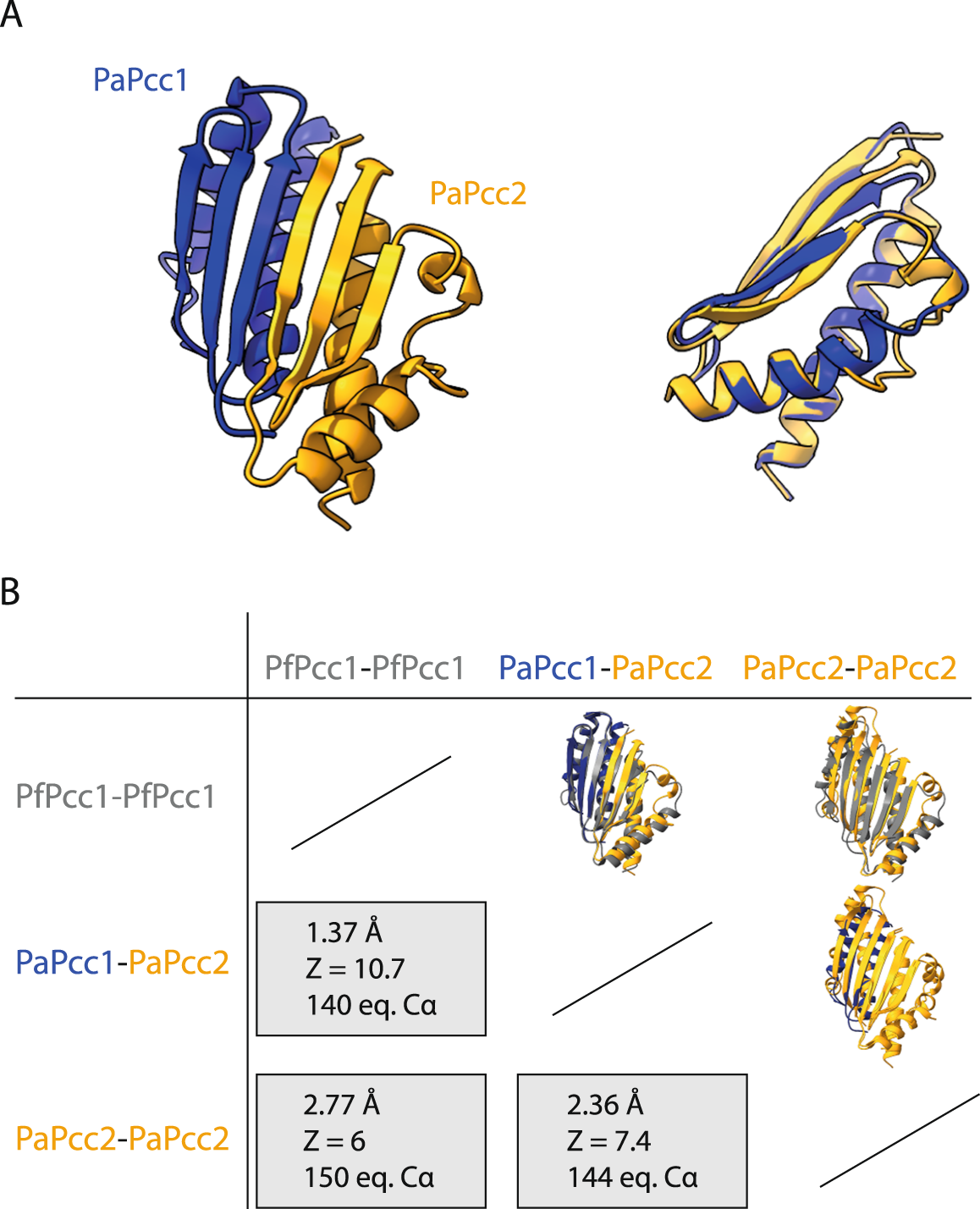

Fig. 5: Crystal structure of PaPcc1-PaPcc2 heterodimer.
From: A paralog of Pcc1 is the fifth core subunit of the KEOPS tRNA-modifying complex in Archaea
A Cartoon presentation of PaPcc1-PaPcc2 structure (in blue and orange, respectively) is shown on the left and the superposition of PaPcc2 onto PaPcc1 is on the right. B Pairwise comparison of PaPcc1 and PaPcc2 homo and heterodimers. The structures were superposed using ChimeraX 1.4. The RMSD of atomic coordinates and Z score are given for the indicated number of equivalent alpha carbons.
