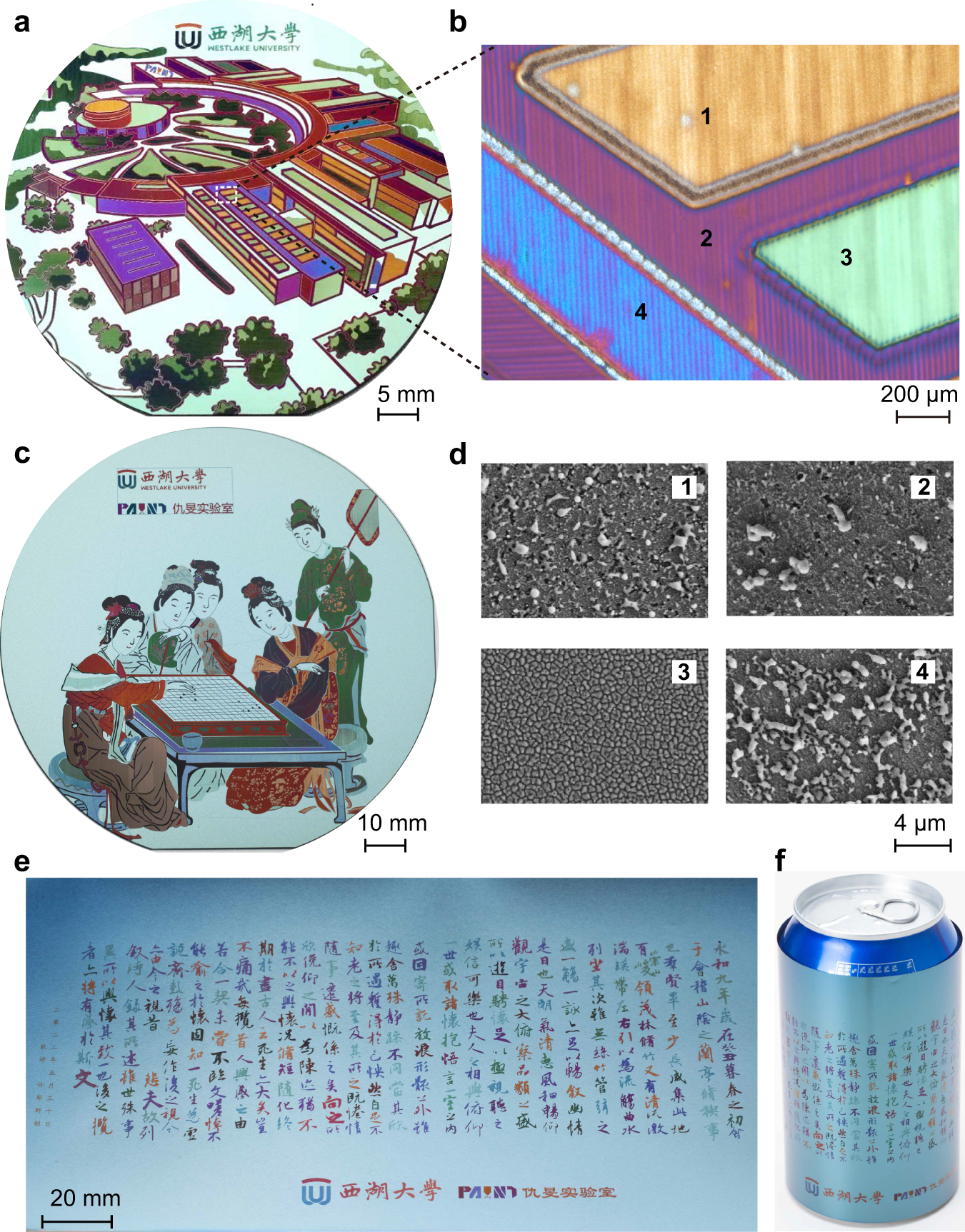

Fig. 5: Large-scale laser color printing.
From: High-speed laser writing of structural colors for full-color inkless printing
a Photograph of a structural color-based large-scale pattern (“The academic ring of Yungu campus at Westlake university”, with the permission from Westlake university), which is printed on TiAlN–TiN hybrid films on a polished 2-in. Si wafer. b Optical microscopy image and corresponding SEM images in areas (d, 1–4). Photographs of laser-printed large-scale patterns on different substrates, including unpolished backside of a 4-in. Si wafer in (c) (“Spring Dawn in the Han Palace”, created by Ying Qiu in the Ming Dynasty, 1498–1552), and on a 50-μm-thick stainless-steel foil in (e) (“Orchid Pavilion Collection”, created by Xizhi Wang in the Tsin Dynasty, 303–361). The thickness of TiAlN and TiN are 60 nm and 50 nm, respectively. f The same pattern as that in (e), while has been rolled onto a drink can.
