Fig. 2: Operando GAXS and quick-XAS characterizations for the OER.

From: Zhang-Rice singlets state formed by two-step oxidation for triggering water oxidation under operando conditions

Fig. 2: Operando GAXS and quick-XAS characterizations for the OER.

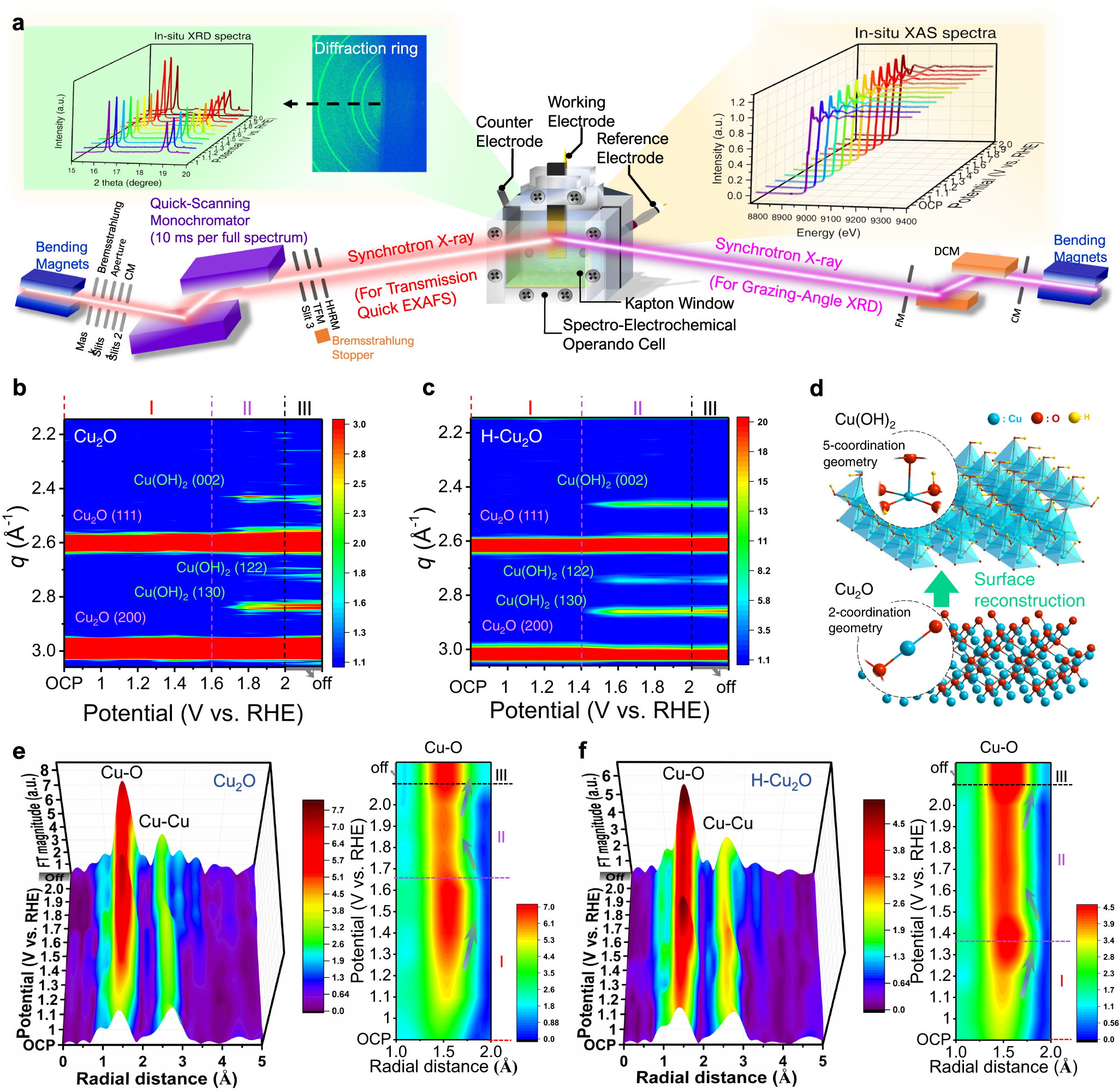

a Schematic illustration of the operando liquid electrochemical cell for the GAXS and quick-XAS apparatus. Operando GAXS of (b) pure Cu2O and (c) H-Cu2O catalysts. d Proposed structural reconstruction during OER. Operando Fourier-transformed EXAFS of (e) pure Cu2O and (f) H-Cu2O catalysts (stages I, II and III are assigned to hydroxylation, oxygen evolution and after OER (potential off), respectively).
