Fig. 6: Mutually pulse-width-selective communication system.

From: Pulse-driven self-reconfigurable meta-antennas

Fig. 6

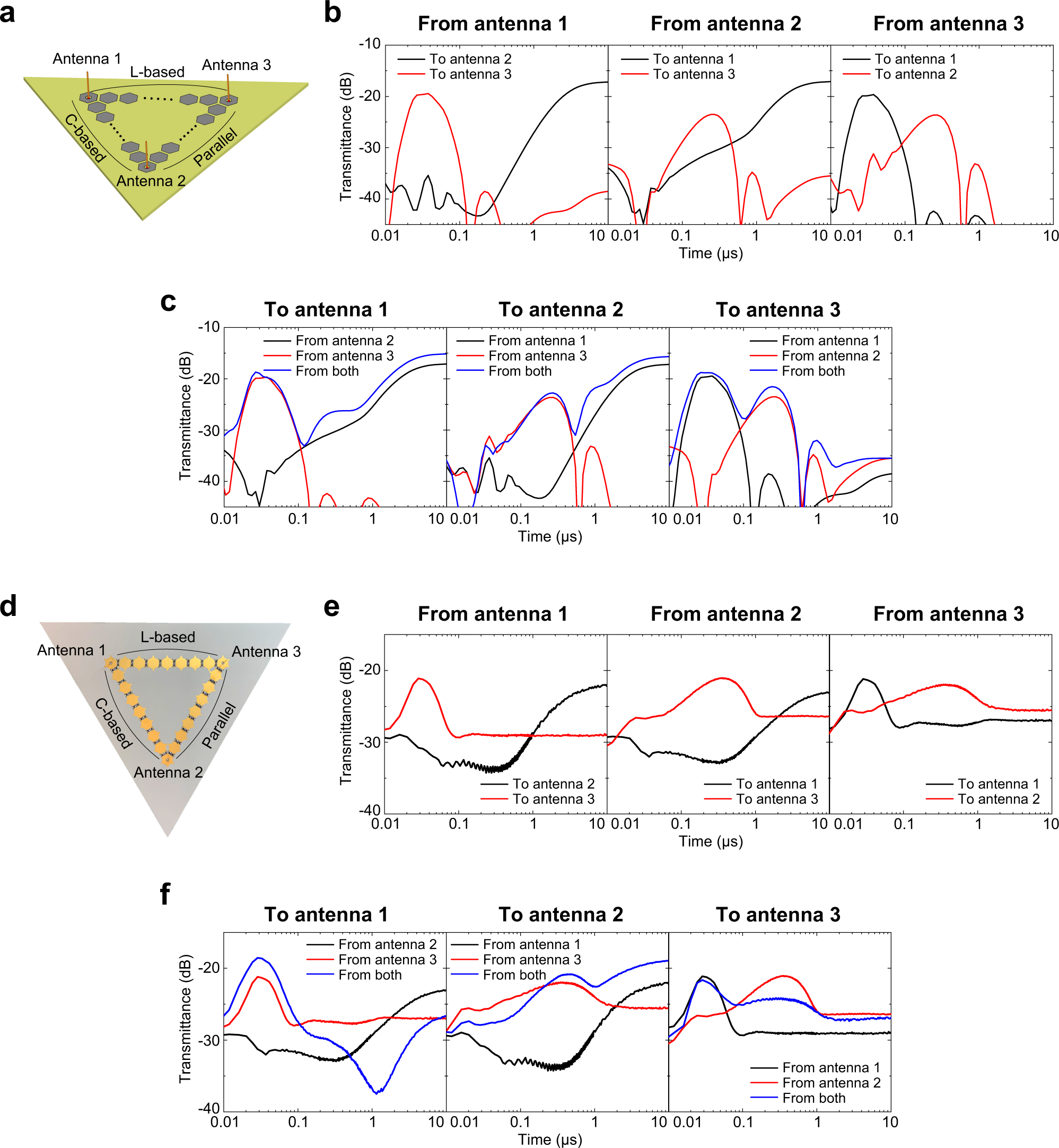

a Simulation model using three antennas connected by either C-based, L-based or parallel waveform-selective metasurface line. The frequency and input power were set to 2.36 GHz and 10 dBm, respectively. b Simulation results of transmittances from (left) antenna 1, (center) antenna 2, and (right) antenna 3. c Simulation results of transmittances to (left) antenna 1, (center) antenna 2, and (right) antenna 3. d Measurement sample. The frequency and input power were set to 2.38 GHz and 15 dBm, respectively. e Measurement results of transmittances from (left) antenna 1, (center) antenna 2 and (right) antenna 3. f Measurement results of transmittances to (left) antenna 1, (center) antenna 2, and (right) antenna 3.
