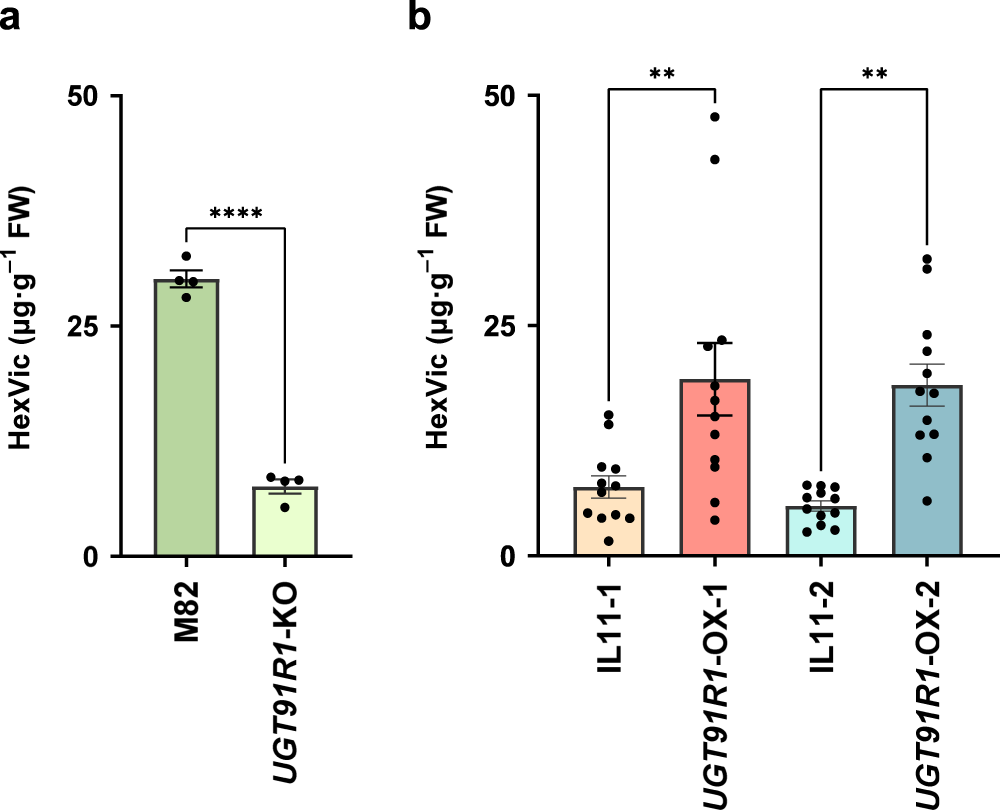

Fig. 4: Metabolic changes in UGT91R1-knockout and -overexpressed tomatoes.
From: Identification of a tomato UDP-arabinosyltransferase for airborne volatile reception
a HexVic content in the leaves of S. lycopersicum cv. M82 and UGT91R1-knockout lines (UGT91R1-KO) exposed to (Z)-3-hexenol. Error bars indicate standard error of the mean from four independent plants. Statistical significance was determined using an unpaired two-tailed t-test, and reported as ****p < 0.0001. FW, fresh weight. b HexVic content in the leaves of UGT91R1-overexpressed IL11-1 and IL11-2 (UGT91R1-OX-1 and UGT91R1-OX-2, respectively) exposed to (Z)-3-hexenol, respectively. Error bars indicate standard error of the mean from 12 independent plants. FW, fresh weight. Data were analyzed using the one-way ANOVA with the Tukey’s test for multiple comparison. Statistical significance is reported as **p < 0.05.
