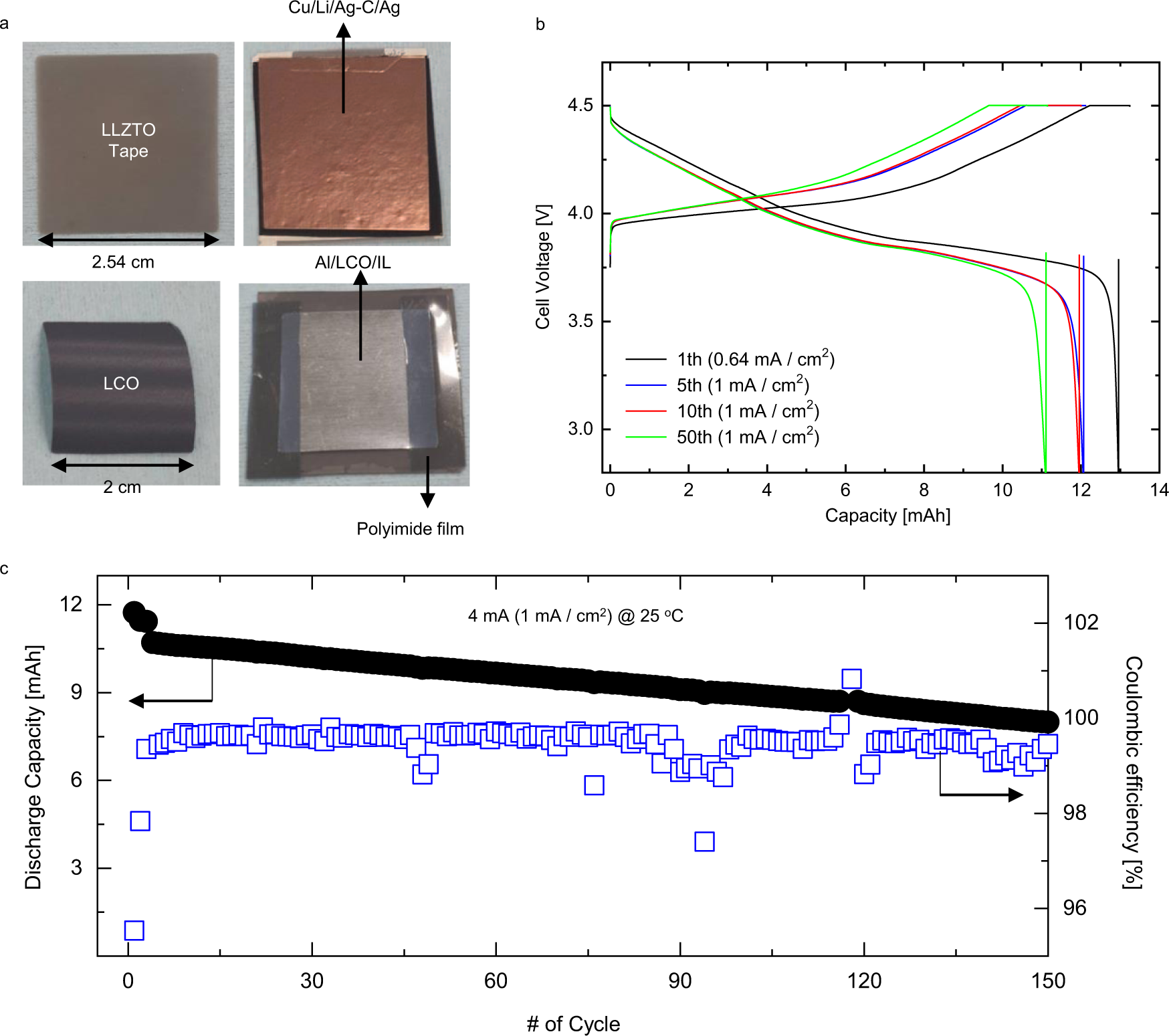

Fig. 6: Electrochemical performance of Li|Ag-C/Ag/LLZTO/IL|LCO cell using large-area thin tape solid electrolyte. | Nature Communications

Fig. 6: Electrochemical performance of Li|Ag-C/Ag/LLZTO/IL|LCO cell using large-area thin tape solid electrolyte.

From: Surface engineering of inorganic solid-state electrolytes via interlayers strategy for developing long-cycling quasi-all-solid-state lithium batteries

Fig. 6: Electrochemical performance of Li|Ag-C/Ag/LLZTO/IL|LCO cell using large-area thin tape solid electrolyte.The alternative text for this image may have been generated using AI.

a LLZTO tape (2.53 cm × 2.53 cm, 74 mm), Cu/Li/Ag-C/Ag attached to LLZTO tape, LCO-based positive electrode (2 cm × 2 cm) and the assembled Li|Ag-C/Ag/LLZTO/IL|LCO cell. b Galvanostatic voltage profiles of the Li|Ag-C/Ag/LLZTO/IL|LCO cell with Ag/Ag-C anode interlayer. c Cycling performance of Li|Ag-C/Ag/LLZTO/IL|LCO single-layer pouch cell at 25 °C without external pressure.
