Fig. 4: 3D reconstruction of d-GFP@MOF-919.
From: Spatially confined protein assembly in hierarchical mesoporous metal-organic framework

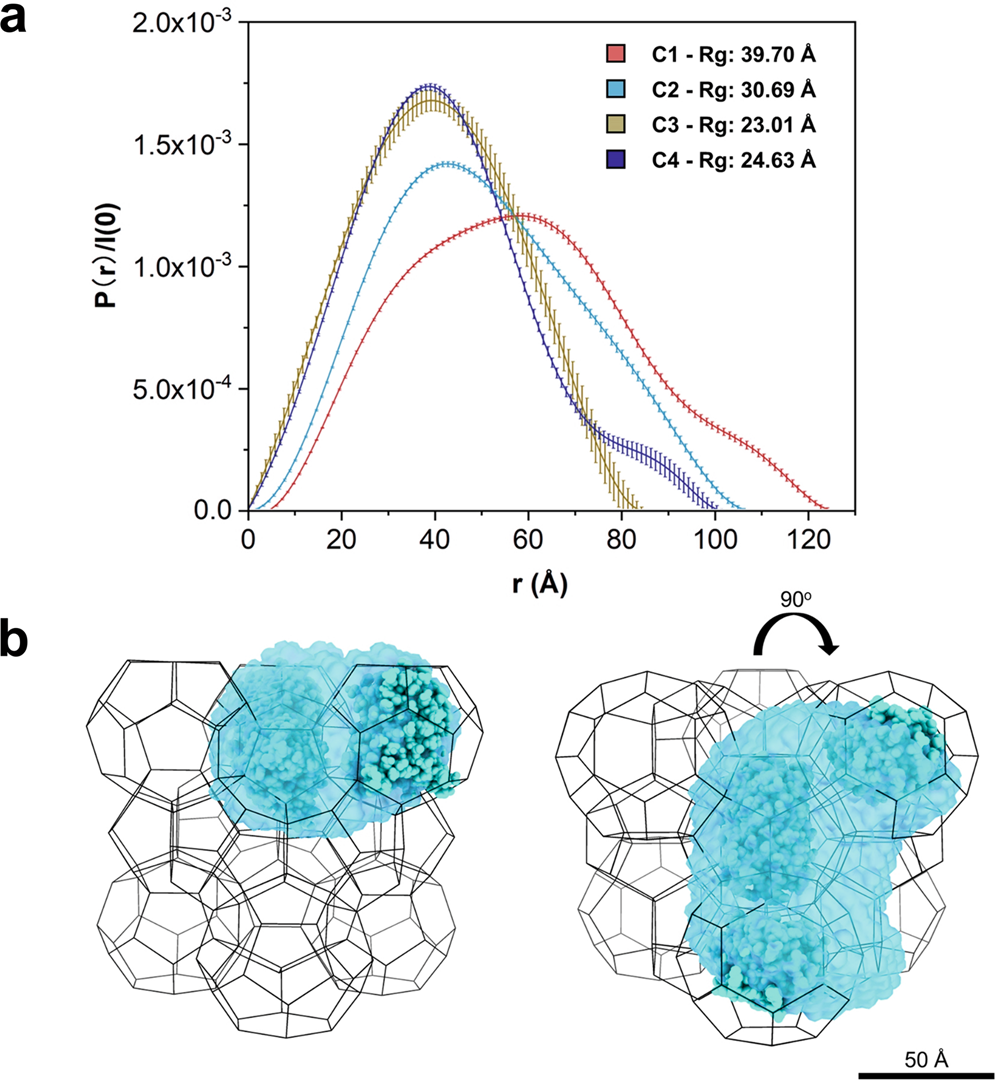

a Experimental P(r) curves for d-GFP loaded in the MOF-919 (C1–C4). b Ab initio structure reconstruction of C2 in structure of MOF-919. The blue-shaded region is reconstructed using scattering profile of C2, and the GFP atomic structure is overlaid by blue balls for comparison.
