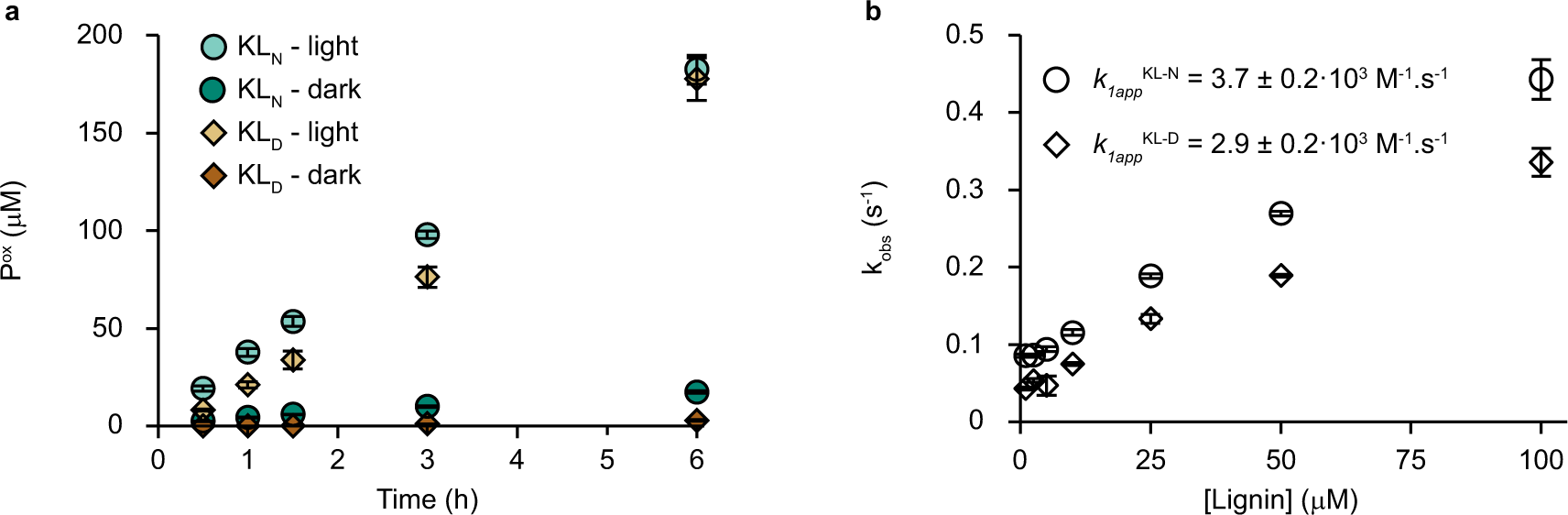

Fig. 4: Lignin-driven ScAA10C-catalyzed solubilization of cellulose and reduction kinetics for SmAA10A.
