Fig. 2: Evolution of local polar displacements.

From: Emergence of high piezoelectricity from competing local polar order-disorder in relaxor ferroelectrics

Fig. 2: Evolution of local polar displacements.

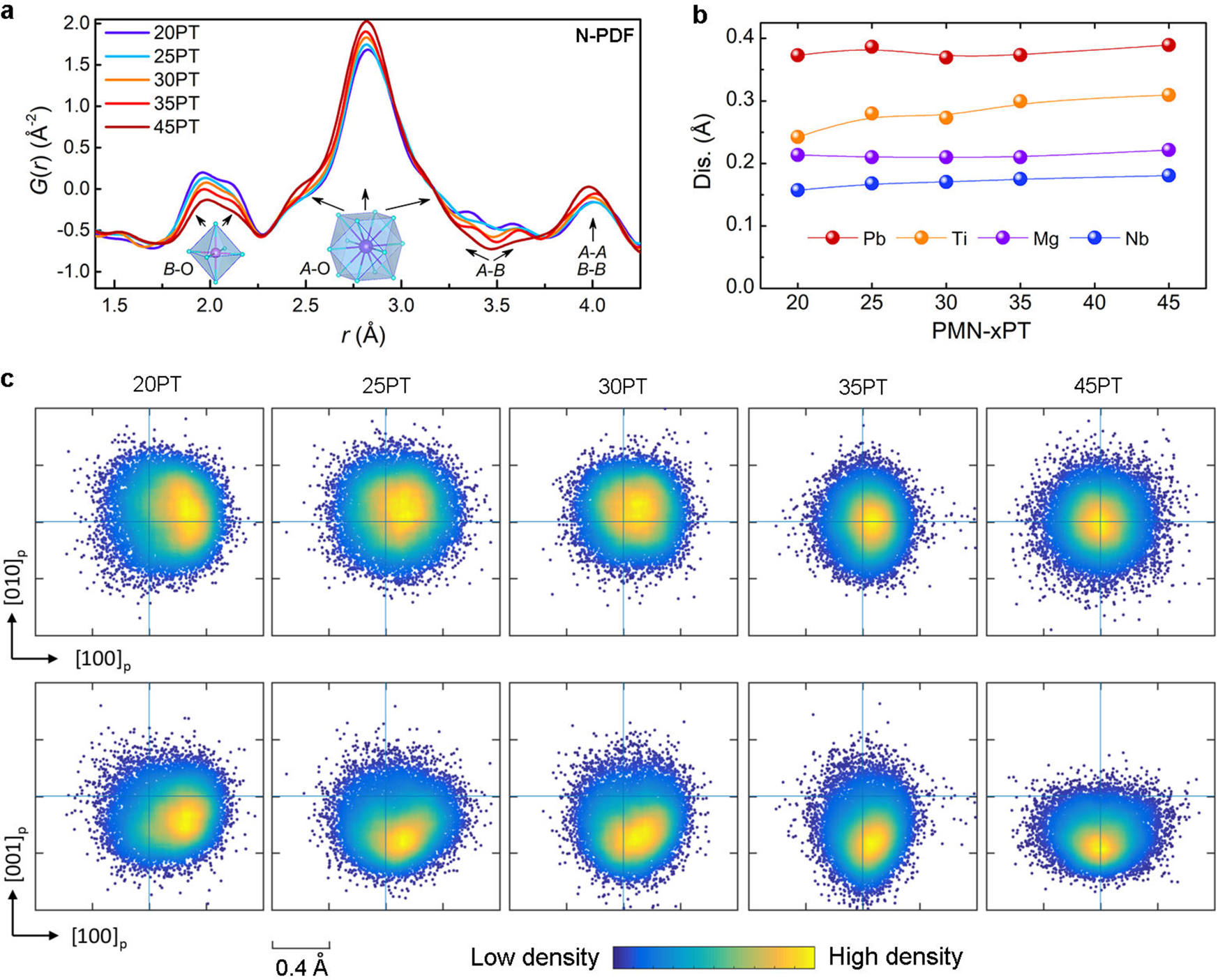

a Selected neutron PDF G(r), showing the evolution of nearest atom-atom pairs. b Mean atomic polar displacement length determined from the center of respective oxygen polyhedron, extracted from the refined 3D atomic configurations. c Projections of the probability density distributions of Pb polar displacement. The guide line represents the origin without displacement.
