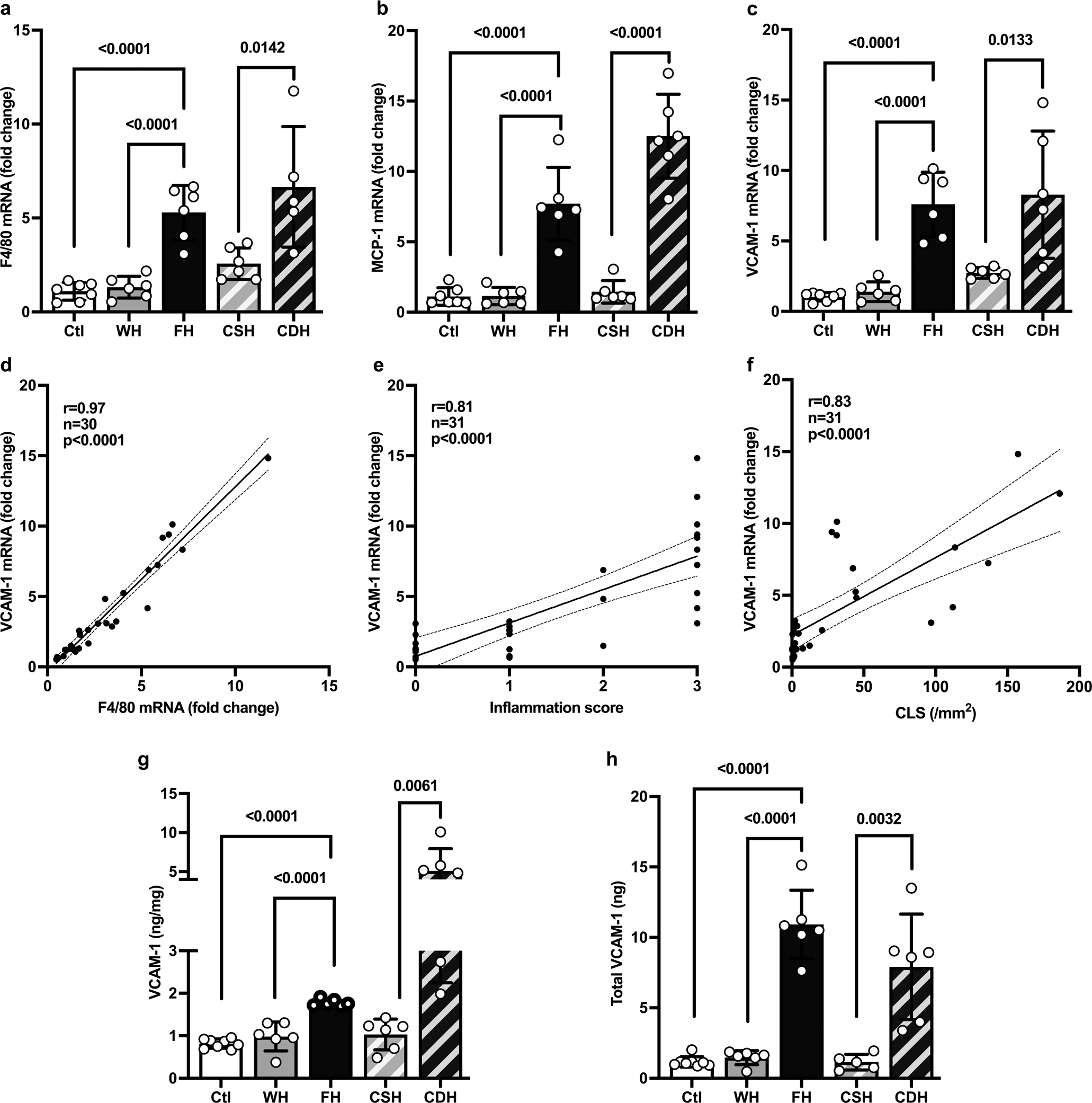

Fig. 4: VCAM1 expression correlates with inflammatory markers.
From: Molecular imaging of liver inflammation using an anti-VCAM-1 nanobody
a F4/80, b MCP-1, and c VCAM-1 mRNA fold change (one-way ANOVA and Student’s t-test, n = 7 for Ctl and n = 6 for other groups). Spearman’s correlations between VCAM-1 mRNA level (fold change compared to housekeeping gene RPL19) and d F4/80 fold change, e histological inflammatory score, and f CLS, respectively. g VCAM-1 protein content per mg of tissue (one-way ANOVA and Student’s t-test, n = 8 for Ctl and n = 6 for other groups). h Total ng of VCAM-1 in the liver (one-way ANOVA and Student’s t-test, n = 8 for Ctl and n = 6 for other groups). All data are represented as mean ± SD and significant p values (corrected for multiple testing using Tukey’s post-hoc when more than 2 groups were compared) are given above the bars. Source data are provided as a Source Data file.
