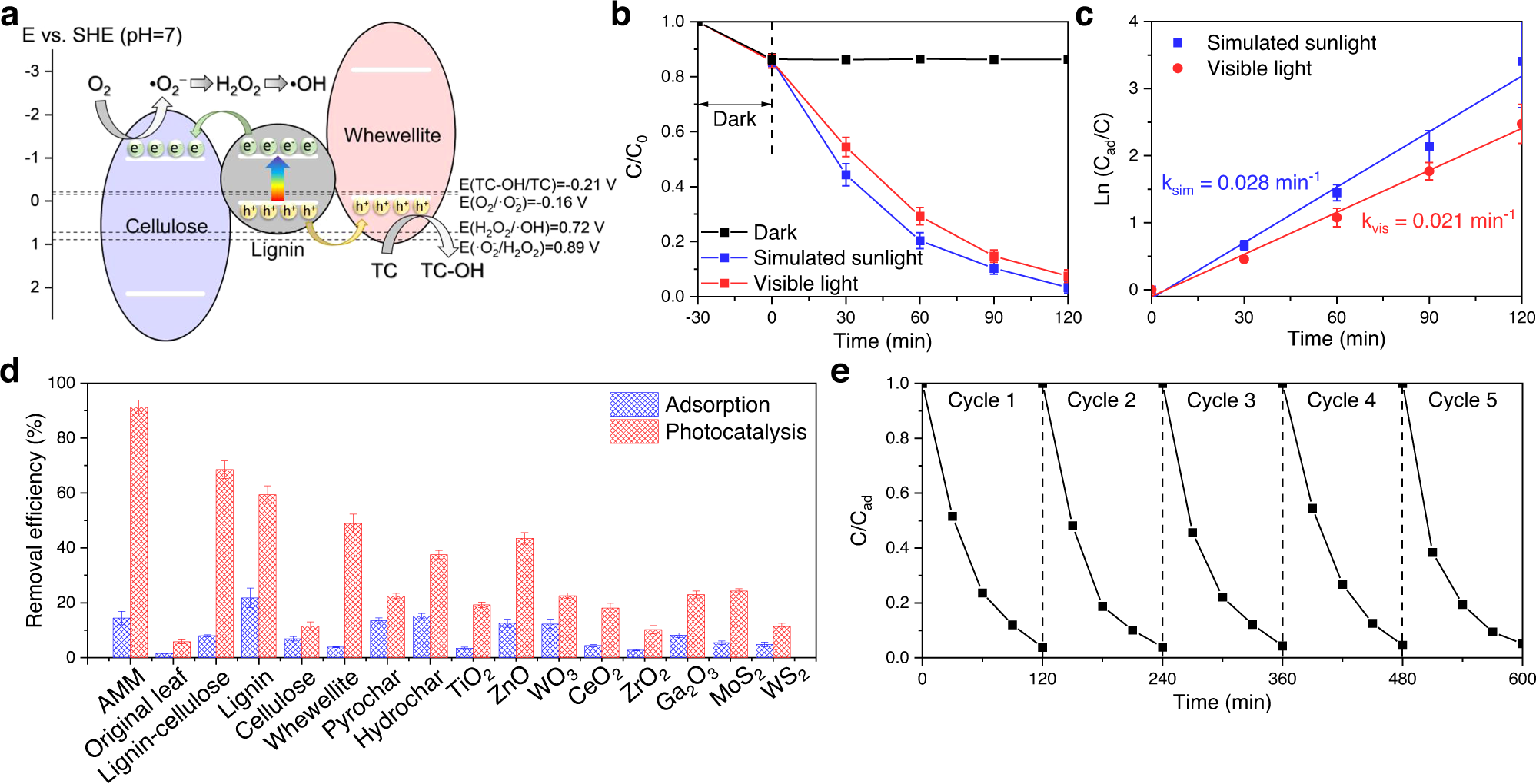

Fig. 6: Application of the AMM film for photocatalytic degradation of the antibiotic tetracycline.

From: Turning dead leaves into an active multifunctional material as evaporator, photocatalyst, and bioplastic

Fig. 6

a Schematic for the visible-light photocatalytic degradation of tetracycline (TC) over the AMM film. b Removal of tetracycline in the dark or under simulated sunlight (1 kW m−2) or visible light (λ > 400 nm, 0.85 kW m−2) over the AMM film. c Reaction kinetic analyses for the photocatalytic degradation of tetracycline over the AMM film. d Comparison of the tetracycline removal efficiencies via adsorption and visible-light photocatalysis with those for a variety of other materials. e Cycling performance of the photocatalytic tetracycline degradation process over the AMM film under simulated sunlight.
