Fig. 3: Generator and estimator prediction results with the experimental test dataset.

From: Extracting particle size distribution from laser speckle with a physics-enhanced autocorrelation-based estimator (PEACE)

Fig. 3: Generator and estimator prediction results with the experimental test dataset.

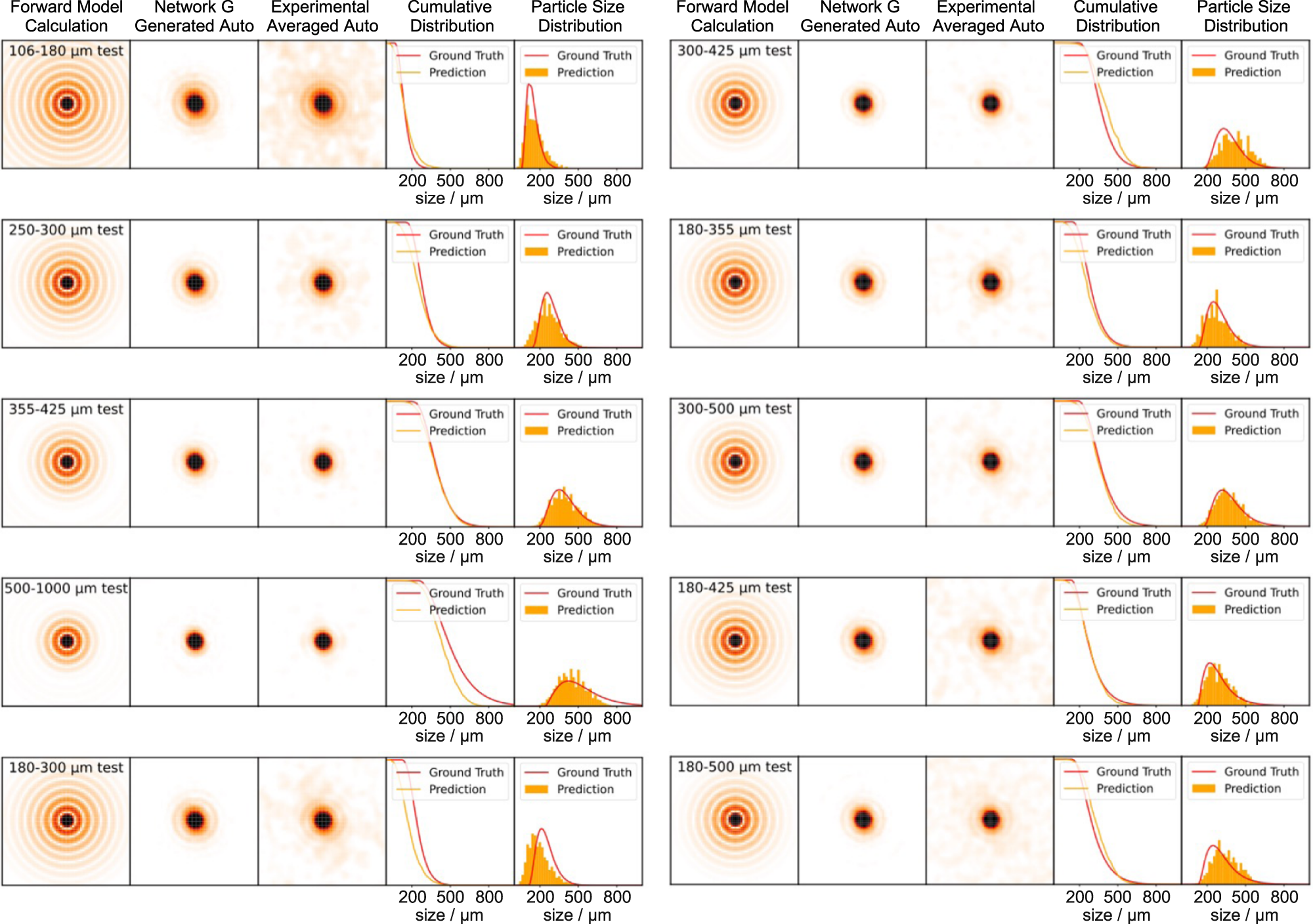

The results of 10 test sample sets are plotted. The first and second columns show the output from the forward operator H and the generator G, respectively. The measured 200 frames averaged autocorrelations are plotted in the third column. The prediction (marked as orange) from the estimator F and ground truth (marked as red) of the cumulative distributions and the corresponding PSDs are plotted together in columns 4 and 5.
