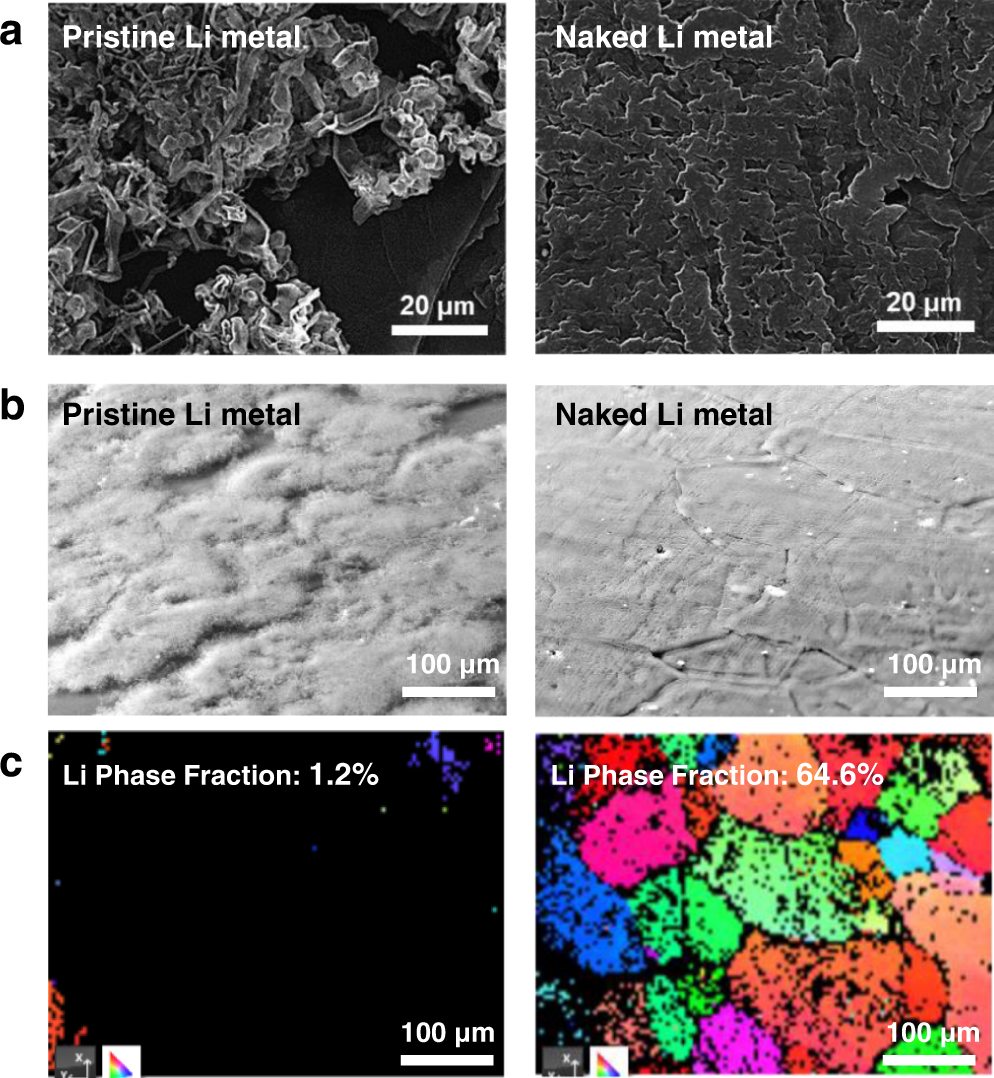

Fig. 4: Effect of naked Li surface on the morphology of the Li deposit.
From: Naked metallic skin for homo-epitaxial deposition in lithium metal batteries
a SEM images of the pristine (left) and naked (right) Li metal foils after galvanostatic electrodeposition at 1 mA cm−2 with 1 mAh cm−2. b Slanted SEM images and the corresponding c EBSD images of the pristine (left) and naked (right) Li metal foils after galvanostatic electrodeposition at 1 mA cm−2 with 1 mAh cm−2.
