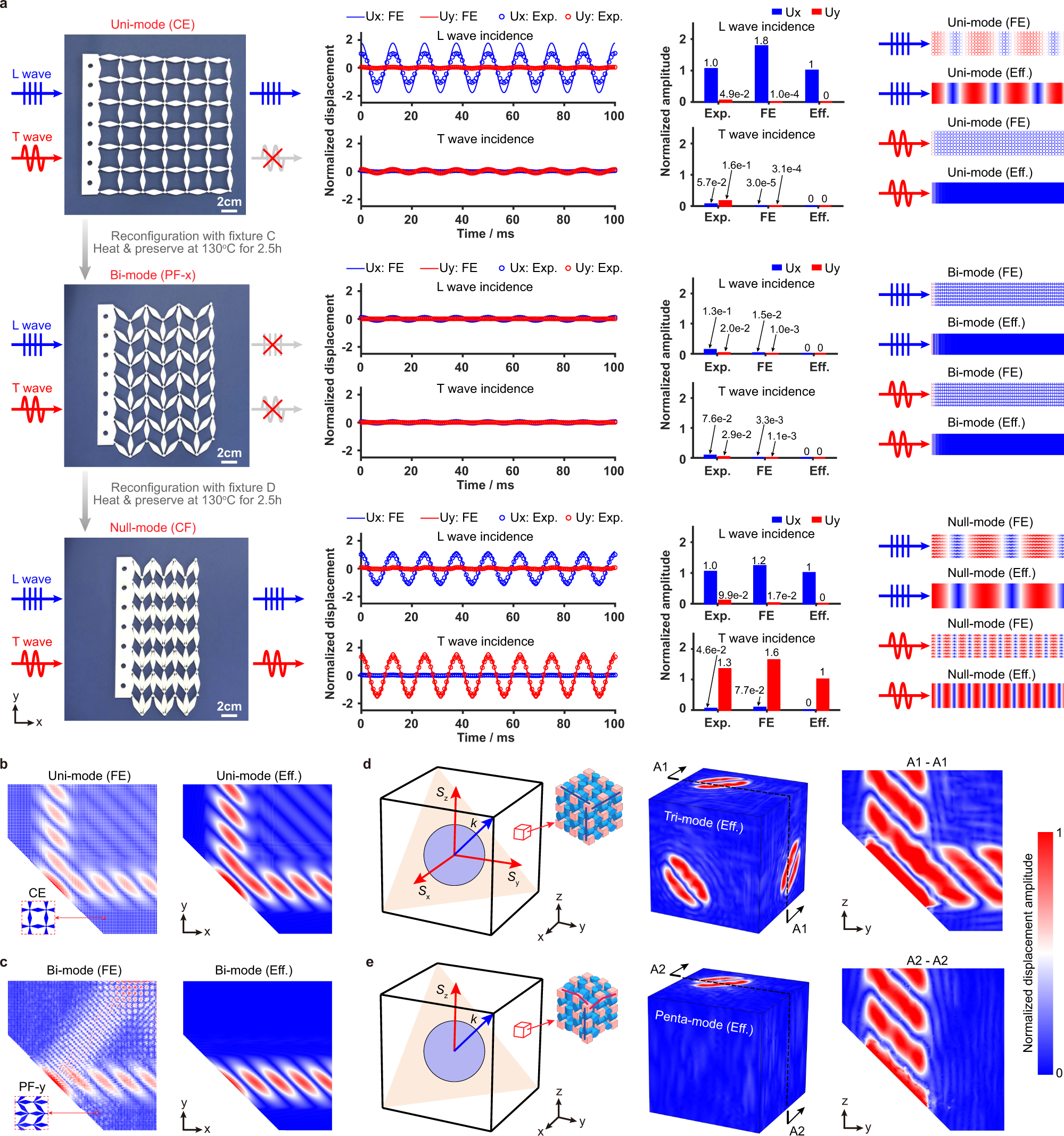

Fig. 4: Dynamic experiments and wave-function programmability of the transformable metamaterial.
From: Engineering zero modes in transformable mechanical metamaterials
a Dynamic experiment of 1D polarized elastic wave manipulation with the fabricated transformable metamaterial sample, validated by the numerical wave simulations on FE sample and equivalent effective metamaterial sample. b, c 2D wave-splitting and wave-filtering functions demonstrated with numerical wave simulations on the 2D FE metamaterial sample as well as on the equivalent effective metamaterial sample. d, e 3D wave-splitting and wave-filtering functions demonstrated with 3D homogenized effective metamaterial sample.
