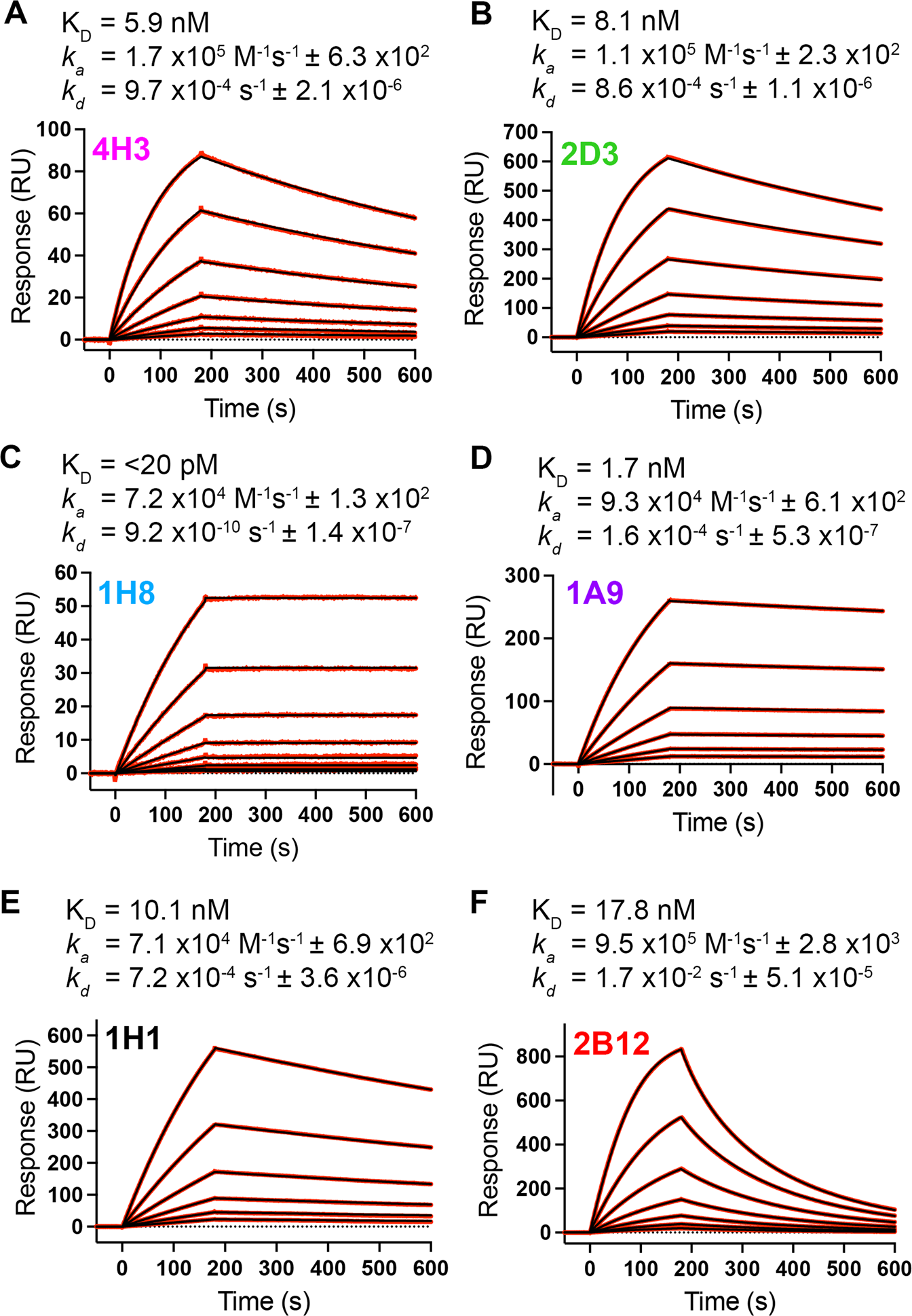

Fig. 2: Neutralizing antibodies bind to prefusion NiV F with high affinity.
From: Structural basis for antibody recognition of vulnerable epitopes on Nipah virus F protein
A–F Binding of Fabs from six neutralizing antibodies to NiV F, measured by surface plasmon resonance. The equilibrium dissociation constant (KD), the association (ka) and dissociation (kd) rate constants are indicated above each graph. Experimental binding curves are shown as red traces, with the best fit values to a 1:1 binding model shown as black lines. Data are representative of two biological replicates and two technical replicates.
