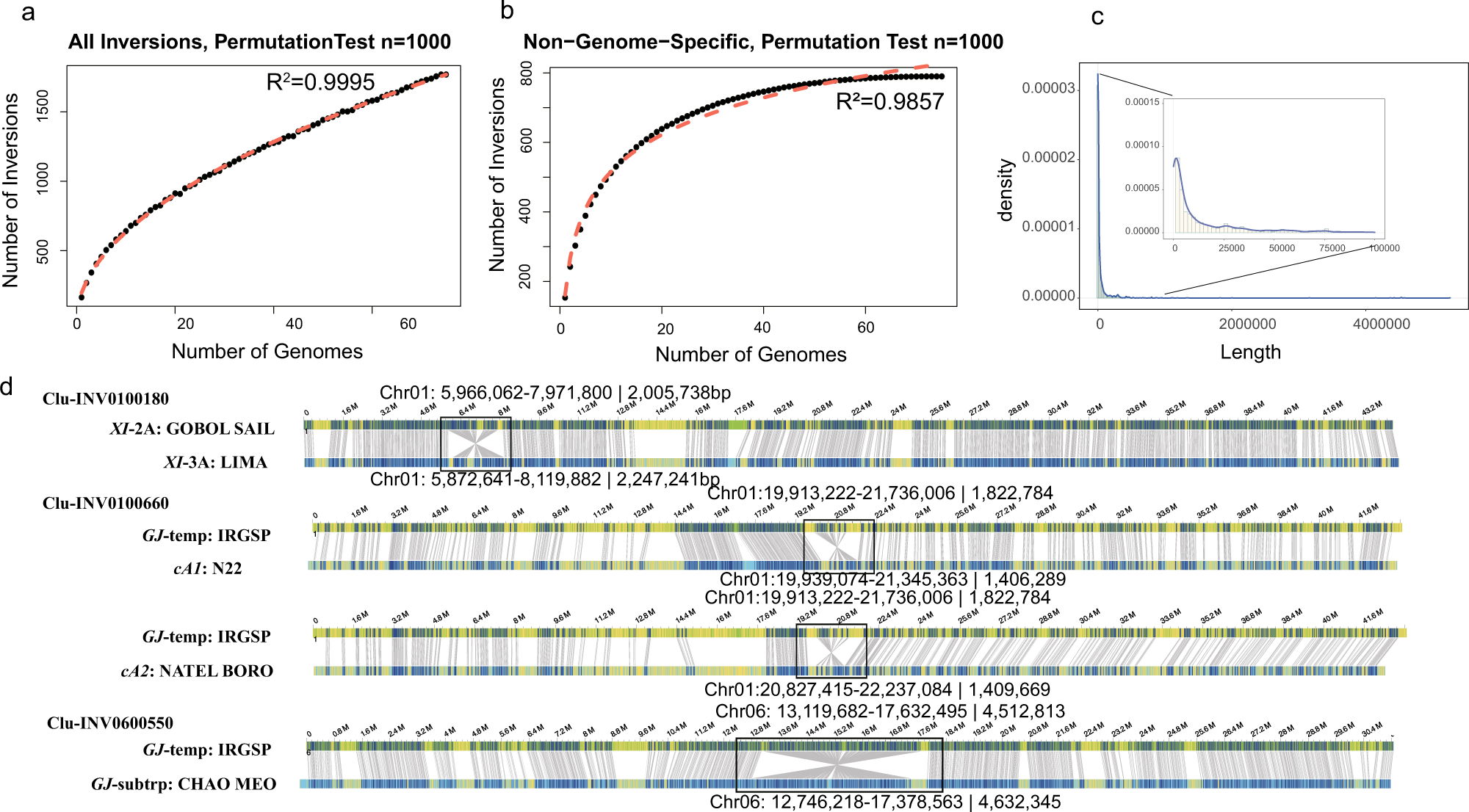

Fig. 1: Rice inversion index summary.

From: Pan-genome inversion index reveals evolutionary insights into the subpopulation structure of Asian rice

Fig. 1: Rice inversion index summary.The alternative text for this image may have been generated using AI.

a, b Resampling permutation test to identify the relationship between the number of genomes and all inversions and shared (non-genome specific) inversions, respectively; c Density of inversion lengths; d Bionano validation of inversions larger than 1 Mb, i.e., Clu-INV0100180, Clu-INV0100660, and Clu-INV0600550. In each panel, the top line shows the optical map used as a reference, the bottom line shows the genome assembly of the variety with the inversion. Gray lines connect restriction sites that are aligned (blue regions), while yellow segments show unaligned regions. Black boxes highlight the position each inversion. Source data are provided as a Source Data file.
