Fig. 5: Ex situ XRD patterns during the Li intercalation reaction.

From: Heterogeneous intercalated metal-organic framework active materials for fast-charging non-aqueous Li-ion capacitors

Fig. 5

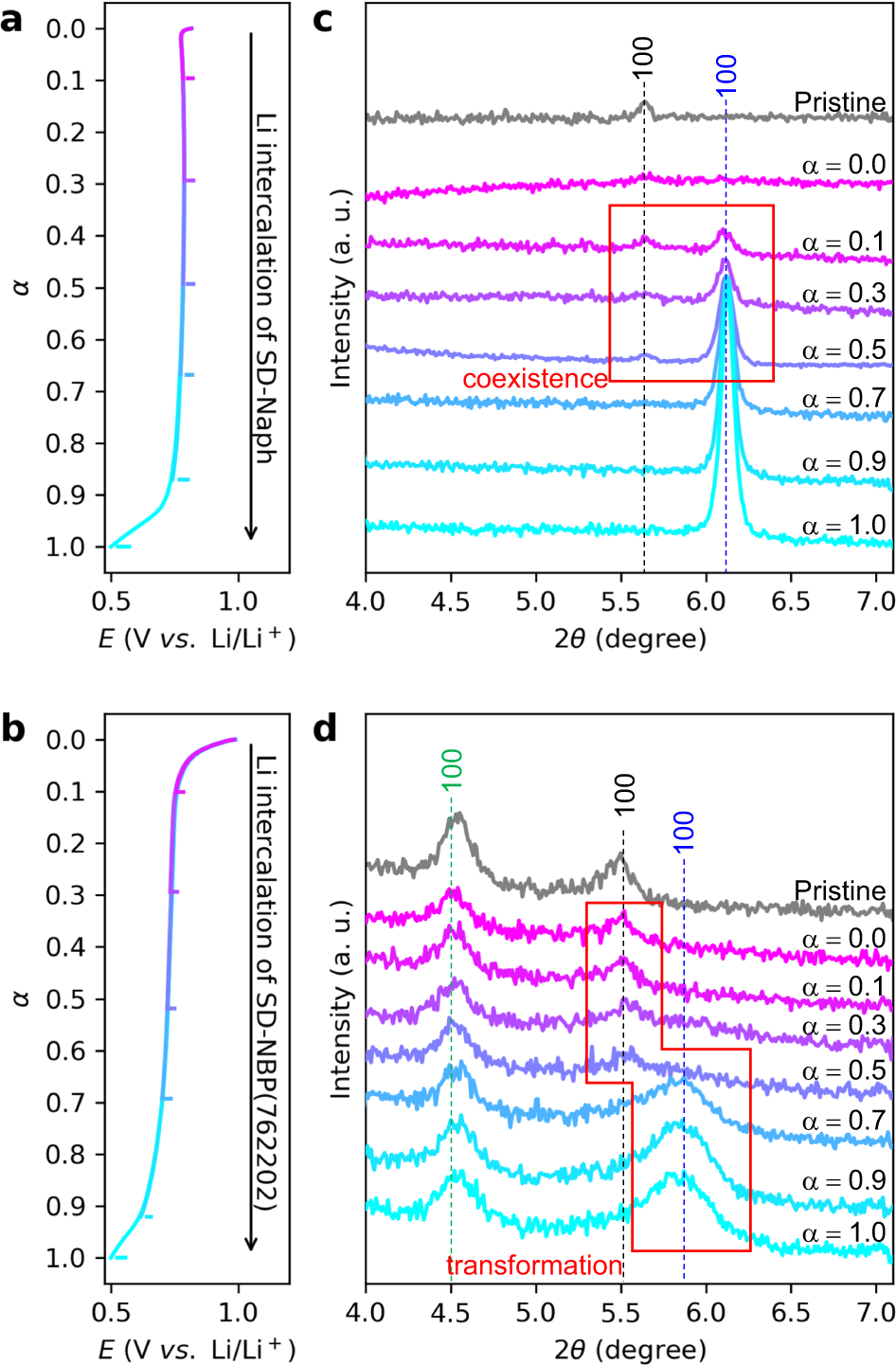

a, b Superimposed profiles of potential-normalized Li ratio (α) during Li intercalation of the respective SD-Naph (a) and SD-NBP(762202) (b) for the preparation of ex situ XRD samples. The α was defined as the capacity ratio normalized by the reversible capacity. c, d Variation in XRD patterns of SD-Naph (c) and SD-NBP(762202) (d) with respect to the normalized Li ratio. Black and blue numbers indicate the indices of the pristine and Li intercalation phases in the naphthalene frame, respectively. The green number indicates the pristine index in the biphenyl framework.
