Fig. 3: Display of color images acquired via brightfield slide microscopy.

From: Interoperable slide microscopy viewer and annotation tool for imaging data science and computational pathology

Fig. 3

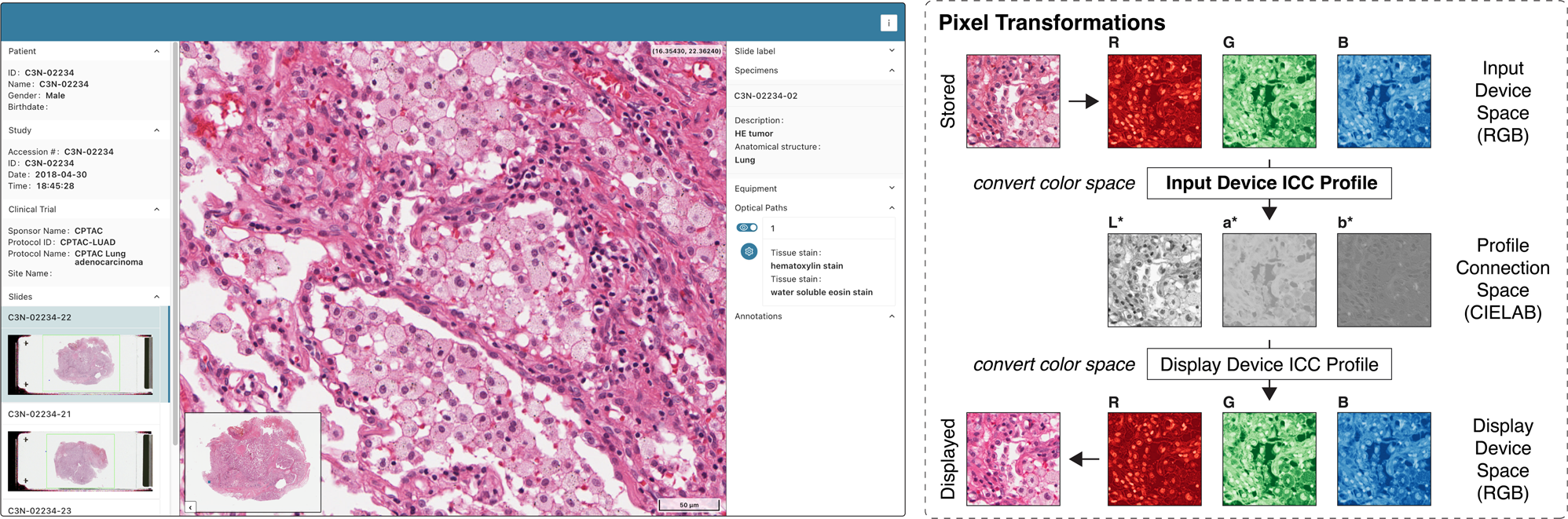

Screenshot of the Slim user interface displaying a color image of a hematoxylin and eosin stained specimen from the Clinical Proteomic Tumor Analysis Consortium (CPTAC) project that was acquired via brightfield whole slide imaging (left). The viewer applies a sequence of pixel transformations to each retrieved image frame to convert color images from the input device color space into the display device color space (right). Note the subtle but perceptible difference in color of the stored and displayed image frames.
