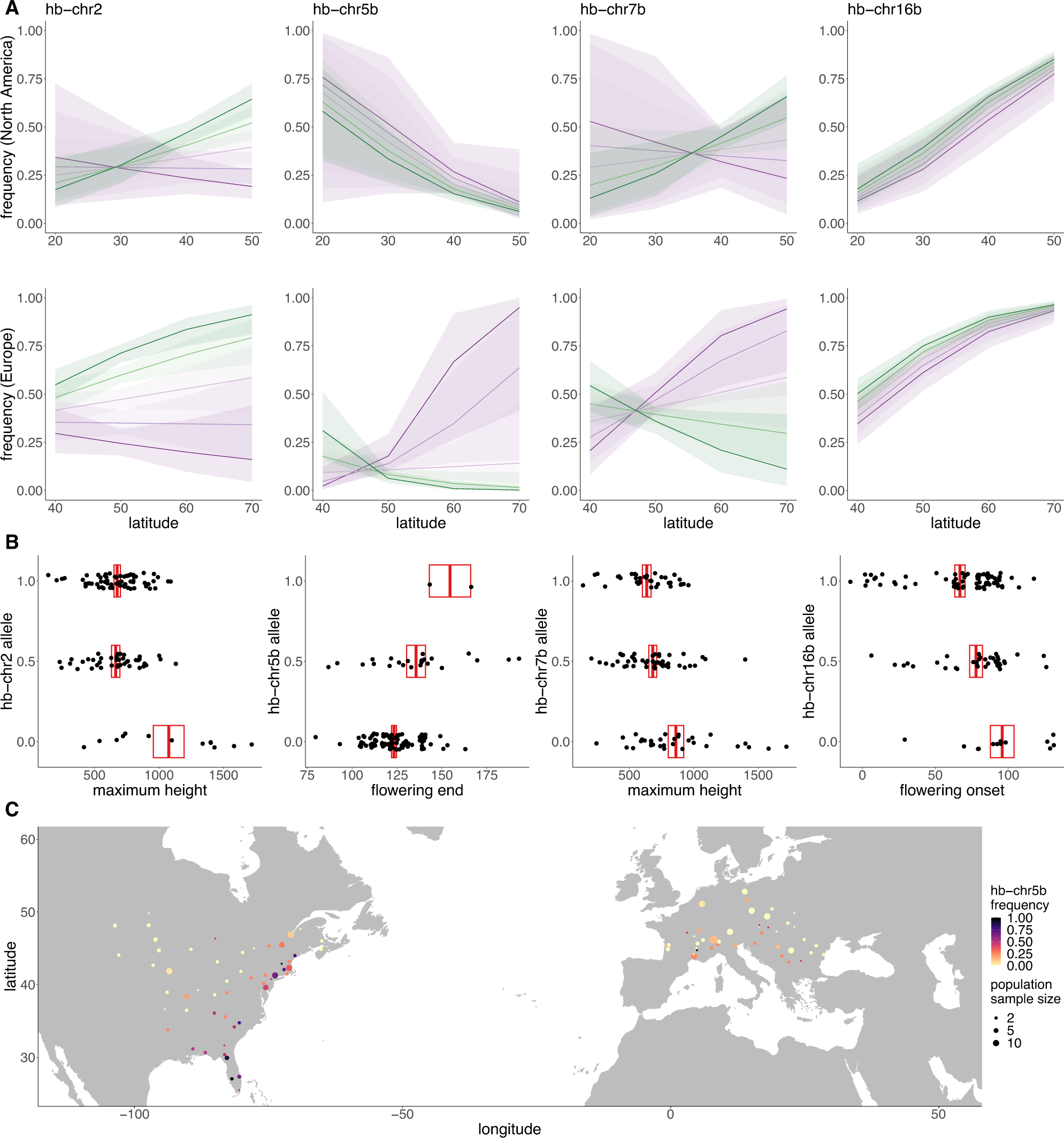

Fig. 5: Haploblock distributions and trait associations.
From: Large haploblocks underlie rapid adaptation in the invasive weed Ambrosia artemisiifolia
A Logistic regression models with error bands representing 95% CI of least-squares regressions (see Supplementary Table 9 and Supplementary Data 5–9 for model details) of haploblock frequency (allele 1) against latitude for four haploblocks across five time bins ranging from most historic (purple) to most modern (green). B Examples of significant associations between haploblock alleles and phenotypes (n = 121 biologically independent samples; boxes denote mean +/− SEM for each genotype). C hb-chr5b allele frequency in modern A. artemisiifolia populations. Source data are provided as a Source data file.
